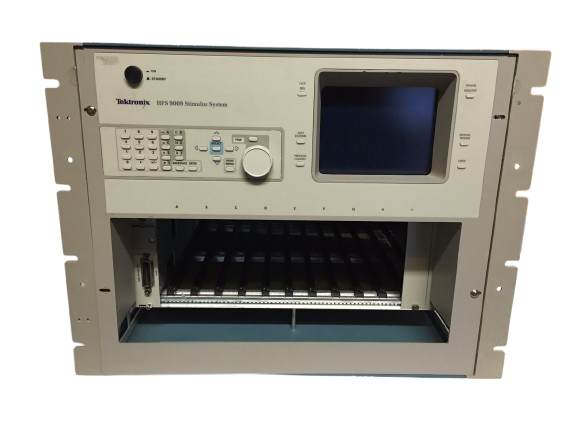

Tektronix HFS9009 Stimulus System

The Tektronix HFS9009 Stimulus System is a comprehensive and versatile instrument that integrates the functionalities of a data generator, pulse generator, and switch matrix. It is designed to provide a complete solution for device characterization and testing with unparalleled accuracy and repeatability. This system is especially beneficial for high-speed, high-performance circuit design, significantly reducing setup times and enhancing test thoroughness throughout the development cycle.

Key Features:

1. High Frequency and Resolution: Operates with a frequency range from 50 kHz to 630 MHz and offers a timing resolution of up to 1 ps, enabling precise signal generation and timing control.
2. Multi-Channel Capability: Supports configurations with up to 36 channels in a single mainframe and can be expanded to 640 channels across multiple phase-locked systems, making it ideal for complex testing scenarios.
3. Advanced Triggering: Includes advanced trigger features such as phase lock and trigger out deskew, facilitating synchronized testing and eliminating timing delays caused by cabling.
4. Modular Design: The system’s modular design allows for customization with various generator cards like the HFS9DG1 and HFS9DG2, supporting different logic families and testing requirements.
5. Programmable: Fully programmable via GPIB/RS-232, it supports automated, repeatable tests in research and development, as well as production environments.

Technical Specifications:

• Frequency Range: 50 kHz to 630 MHz
• Timing Resolution: 1 ps
• Output Channels: Configurable up to 36 channels in one mainframe
• Transition Times: Fixed rise time <250 ps with HFS9DG1; variable from 800 ps to 6 ns with HFS9DG2
• Phase Lock Frequency Range: 6 MHz to 630 MHz
• Phase Lock Amplitude Range: 0.8 V to 1.0 Vp-p
