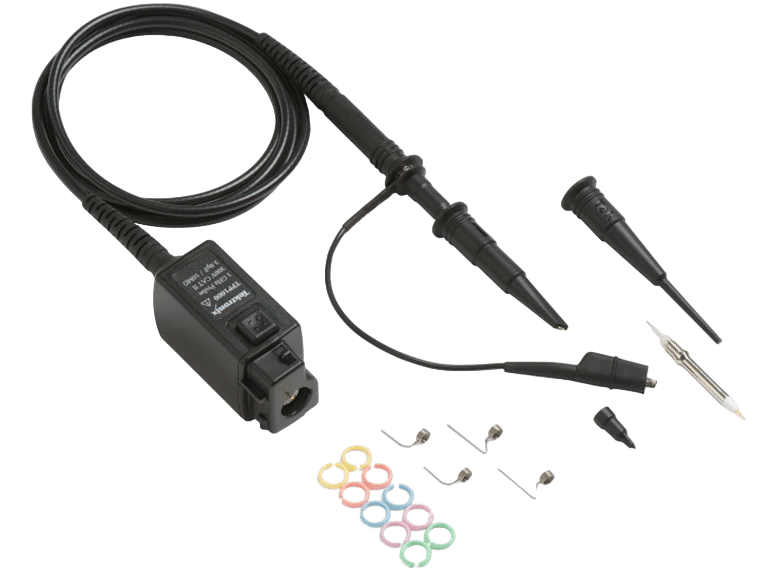

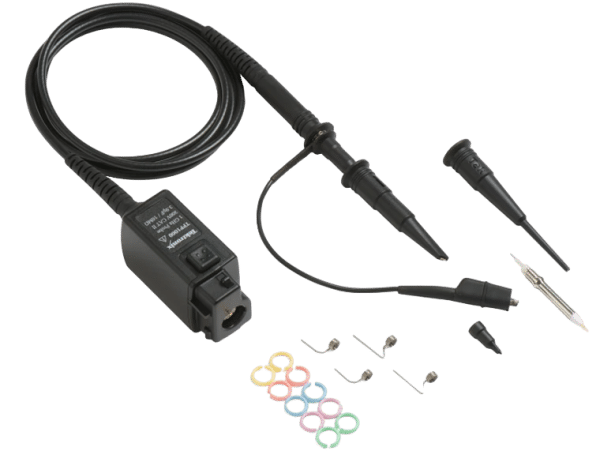

Tektronix TPP1000 Passive Probe, 1 GHz, 10X, 3.9 pF, 300 V

The Tektronix TPP1000 Passive Probe offers exceptional performance with a 1 GHz bandwidth and a 10X attenuation factor. This probe is ideal for capturing high-frequency components, ensuring minimal impact on circuit performance due to its low capacitive loading of less than 3.9 pF. The TPP1000 is compatible with Tektronix MDO3000, MDO4000, MSO/DPO5000, and 5 Series MSO Series oscilloscopes, making it a versatile tool for various testing environments.

Key Features:

• High Bandwidth: 1 GHz bandwidth for precise signal capture.
• Low Capacitive Loading: Less than 3.9 pF input capacitance minimizes circuit impact.
• 10X Attenuation: Provides accurate signal attenuation for high-voltage measurements.
• 300 V CAT II Input Voltage: Suitable for a wide range of measurement scenarios.
• Compact Design: Small probe head and body enhance visibility and access to small-geometry circuit elements.
• Replaceable Tip Cartridges: MMCX tip cartridges provide secure, hands-free connectivity with versatile adapters for different connection types.
• Built-In AC Compensation: Optimizes signal path across the entire frequency range for accurate measurements.
• Intelligent Communication: Automatically scales and adjusts oscilloscope display units to match probe attenuation.

Technical Specifications:

• Bandwidth: 1 GHz
• Attenuation: 10X
• Input Capacitance: < 3.9 pF
• Input Voltage: 300 V CAT II
• Compatibility: MDO3000, MDO4000, MSO/DPO5000, and 5 Series MSO Series oscilloscopes
• Cable Length: 1.3 meters
