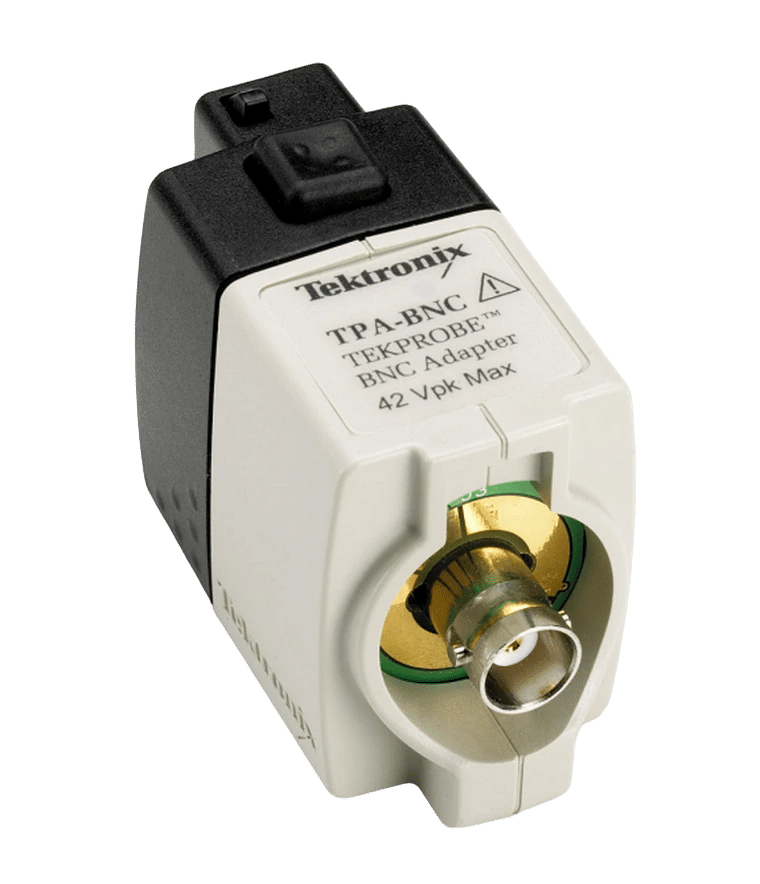

Tektronix TPA-BNC Probe Adapter

The TPA-BNC adapter allows users to connect TekProbe interface products—including active, differential, high-voltage, current, and optical probes—to modern Tektronix oscilloscopes equipped with the TekVPI interface. This seamless integration ensures that the oscilloscope can supply necessary power, communication, and offset control to the connected probe, maintaining full functionality and performance.

Key Features:

• Compatibility: Supports existing TekProbe products, enabling their use with new-generation Tektronix oscilloscopes with TekVPI interface.
• Power and Communication: Provides the necessary power, serial communication, and offset control for attached probes.
• LED Status Indicator: Features an LED indicator to confirm the successful power-up of the connected probe.
• Protection: Includes overcurrent and thermal overload protection to safeguard both the adapter and connected probes.
• Ease of Use: Simple plug-and-play design, facilitating easy integration with the oscilloscope’s TekVPI interface.

Technical Specifications:

• Bandwidth: DC to >3 GHz
• VSWR: < 1.23:1 up to 3 GHz
• RF Insertion Loss: < 0.25 dB
• Delay Time: 245 ps
• Maximum Input Signal Voltage: 42 Vpk-pk, 30 VRMS, 60 VDC

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
