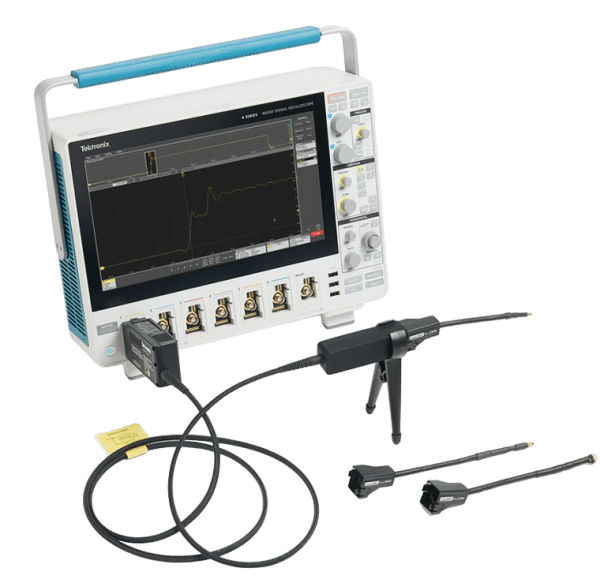

Tektronix TIVP02 IsoVu 200 MHz Isolated Probe with 2 m cable

The TIVP02 IsoVu probe is engineered to eliminate common mode interference through optical isolation, delivering accurate differential measurements up to ±2500 V on reference voltages slewing ±60 kV at 100 V/ns or faster. This second-generation IsoVu probe offers all the benefits of IsoVu technology at a significantly reduced size and improved performance metrics.

Key Features:

• Bandwidth: 200 MHz
• Differential Voltage: Up to ±2500 V
• Common Mode Voltage: Up to ±60 kV
• Cable Length: 2 meters
• Common Mode Rejection Ratio (CMRR):
  • 160 dB at DC
  • 120 dB at 100 MHz
  • 80 dB at 1 GHz
• Rise Time: 2 ns
• Input Impedance: < 2 pF
• Differential DC Gain Accuracy: < 2%

Technical Specifications:

• Bandwidth: 200 MHz
• Differential Input Voltage Range: ±2500 V
• Common Mode Voltage Range: ±60 kV
• Input Capacitance: < 2 pF
• Rise Time: 2 ns
• Cable Length: 2 meters
• Input Impedance:
  • 50 ? || N/A (50 ? mode)
  • 1 M? || 11 pF (1 M? mode)

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
