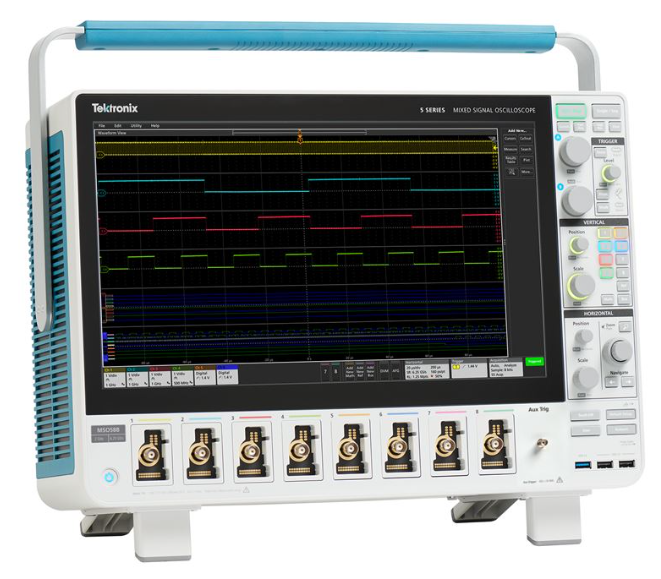

Tektronix MSO54-BW1000 1GHz Mixed Signal Oscilloscope

The Tektronix MSO54-BW1000 is a 1GHz Mixed Signal Oscilloscope that offers superior performance and a user-friendly interface, making it ideal for tackling today’s most challenging design tasks. This model features the industry’s largest high-definition display and a unique pinch-swipe-zoom touchscreen, enhancing the overall user experience. The MSO54-BW1000 is equipped with four FlexChannel inputs, each capable of analyzing one analog signal or eight digital logic signals, making it a versatile tool for a wide range of applications.

Key Features:

1. FlexChannel Technology: Each channel can be used as one analog input or eight digital inputs, providing unparalleled flexibility and broader system visibility.
2. High-Resolution Display: The 15.6-inch HD touchscreen offers a clear and detailed view of your signals, allowing for precise analysis.
3. Bandwidth and Sample Rate: With a 1GHz bandwidth and a real-time sample rate of 6.25 GS/s on all channels, this oscilloscope captures fast and transient events accurately.
4. Record Length: Standard record length of 62.5 Mpoints, expandable to 125, 250, or 500 Mpoints, ensuring you can capture long-duration signals without compromising detail.
5. Advanced Trigger and Search Capabilities: Features like Edge, Pulse Width, Logic, and Visual Trigger help you isolate and analyze complex signals quickly and efficiently.
6. Spectrum View: Simultaneous time and frequency domain analysis with independent controls for each domain.
7. FastFrame™ Segmented Memory: Enables efficient capture of burst signals with a trigger rate exceeding 5,000,000 waveforms per second.

Technical Specifications:

• Channels: 4 analog channels, expandable up to 32 digital channels using TLP058 logic probes.
• Vertical Resolution: 12-bit ADC, up to 16 bits in High-Res mode.
• Waveform Capture Rate: Greater than 500,000 waveforms per second.
• Connectivity: USB 3.0, LAN (10/100/1000 Base-T Ethernet; LXI compliant), DisplayPort, DVI-D, and VGA.
• Standard Probes: Includes one 10 M? passive voltage probe per channel.
• Dimensions: 12.2 in (309 mm) H x 17.9 in (454 mm) W x 8.0 in (204 mm) D.
• Weight: Less than 25 lbs (11.4 kg).

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
