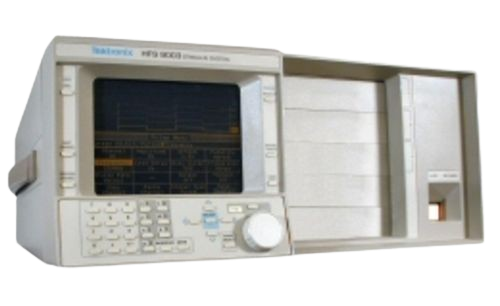

Tektronix HFS9003 Programmable Stimulus System

The Tektronix HFS9003 is a versatile programmable stimulus system designed to facilitate comprehensive device characterization and testing. Combining the functionalities of a data generator, pulse generator, and switch matrix, this system is ideal for high-speed, high-performance circuit testing and development. Its modular design allows for easy customization and scalability to meet the needs of various testing scenarios.

Key Features:

1. High Precision Timing: The HFS9003 provides timing resolution down to 1 ps, which is essential for accurate signal generation and timing analysis.
2. Multi-Channel Capability: Supports up to 12 channels in a single 3-slot mainframe, with all channels slaved to a common clock for precise edge placement.
3. Modular Design: Can be configured with HFS9DG1 and HFS9DG2 Data Time Generator cards, allowing for flexible setup and testing of different logic families.
4. Advanced Triggering: Includes advanced trigger features such as phase lock and trigger out deskew, enabling synchronized and precise testing.
5. Programmable Interface: Fully programmable via GPIB (IEEE 488), allowing for automated and repeatable tests.

Technical Specifications:

• Frequency Range: 50 kHz to 630 MHz
• Timing Resolution: 1 ps
• Channels: Up to 12 in a single mainframe
• Output Transition Time: Fixed rise time <250 ps with HFS9DG1; variable from 800 ps to 6 ns with HFS9DG2
• Phase Lock Frequency Range: 6 MHz to 630 MHz
• Phase Lock Amplitude Range: 0.8 V to 1.0 Vp-p
