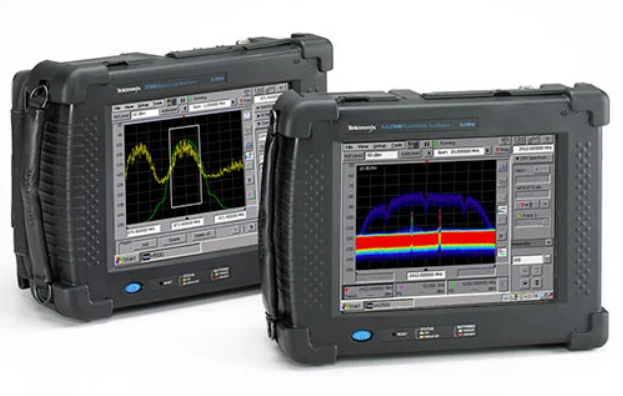

Tektronix H500 Real-Time Handheld Spectrum Analyzer

The Tektronix H500 is a real-time, handheld spectrum analyzer designed for comprehensive RF environment analysis. This powerful tool integrates advanced features to quickly scan, classify, and locate both known and unknown signals. Its rugged, field-ready design ensures durability and reliability for outdoor and challenging environments.

Key Features:

1. DPX® Live RF Spectrum Display: This revolutionary technology processes up to 10,000 spectrums per second, providing a real-time view of RF signals with a 100% Probability of Intercept (POI) for signals as short as 125 µs.
2. Wide Frequency Range: The H500 operates from 10 kHz to 6.2 GHz, making it suitable for a wide range of applications, including commercial, military, and wireless communications.
3. 20 MHz Real-Time Bandwidth: Offers a wide instantaneous bandwidth for capturing transient events and analyzing wideband signals effectively.
4. High Dynamic Range and Low Noise: Outstanding displayed average noise level (DANL) of -153 dBm/Hz ensures accurate detection of weak signals, while a spurious-free dynamic range (SFDR) and phase noise of -110 dBc/Hz at 1 MHz offset provide clear signal analysis.
5. Built-in GPS and Mapping: Integrated GPS receiver and mapping capabilities allow for precise geolocation of signals, aiding in signal hunting and interference analysis.
6. Portable and Durable: With a compact, lightweight design and a rugged build, the H500 is designed for ease of use in the field, featuring a 10.4-inch transflective LCD color display for clear visibility in various lighting conditions.

Technical Specifications:

• Frequency Range: 10 kHz to 6.2 GHz
• Resolution Bandwidth (RBW): 10 Hz to 3 MHz
• Real-Time Bandwidth: 20 MHz
• Displayed Average Noise Level (DANL): -153 dBm/Hz
• Dynamic Range: <70 dB
• Phase Noise: -110 dBc/Hz at 1 MHz offset
• Display: 10.4-inch diagonal, transflective LCD, color
• Connectivity: LAN, USB
• Power: AC powered, battery operated
• Dimensions: 25.5 cm x 33 cm x 12.5 cm (H x W x D)
• Weight: 5.56 kg (12.27 lbs)
• Operating Temperature: 0 to 50 °C
• Storage Temperature: -20 to +60 °C

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.
