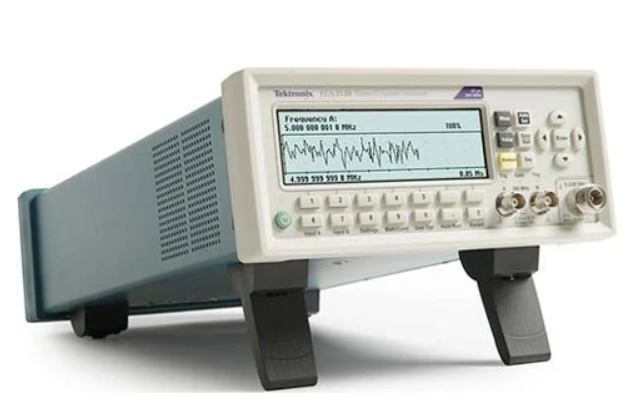

Tektronix FCA3103 Standard Timebase Frequency Counter/Analyzer, 3 GHz, 3-Channel

The Tektronix FCA3103 is a high-precision frequency counter and analyzer designed for demanding R&D and production testing environments. It features a standard timebase and supports three input channels, allowing for comprehensive signal analysis up to 3 GHz. This instrument combines multiple functions into one, providing exceptional frequency and time resolution, making it a valuable tool for engineers and technicians.

Key Features:

1. Wide Frequency Range: Measures frequencies from DC to 3 GHz, suitable for various RF and microwave applications.
2. High Resolution and Accuracy: Offers a frequency resolution of 12 digits per second and a single-shot time resolution of 50 ps, ensuring precise and reliable measurements.
3. Multi-Channel Capability: Includes three input channels (two channels up to 300 MHz, one channel up to 3 GHz), allowing simultaneous analysis of multiple signals.
4. Fast Data Transfer: Capable of transferring up to 250,000 samples per second to internal memory and 15,000 samples per second over GPIB or USB, enhancing measurement efficiency.
5. Advanced Analysis Modes: Features comprehensive analysis tools including measurement statistics, histograms, trend plots, and Allan deviation for in-depth signal evaluation.
6. Large Internal Memory: Supports deep memory for storing up to 3.75 million samples, facilitating extensive data collection and analysis.
7. User-Friendly Interface: Multi-parameter display shows auxiliary measurements alongside primary measurements, providing comprehensive data at a glance.
8. Connectivity Options: Includes USB and GPIB interfaces for easy PC connectivity and integration into automated test systems.

Technical Specifications:

• Frequency Range: DC to 3 GHz
• Input Channels: 3 (Two channels up to 300 MHz, one channel up to 3 GHz)
• Frequency Resolution: 12 digits per second
• Single-Shot Time Resolution: 50 ps
• Measurement Throughput: Up to 250,000 samples/s to internal memory, 15,000 samples/s over USB/GPIB
• Voltage Resolution: 3 mV or better
• Display: Multi-parameter display for comprehensive data visualization
• Interfaces: USB, GPIB
• External Arming Input: Yes
• Reference Oscillator Output: 10 MHz

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.
