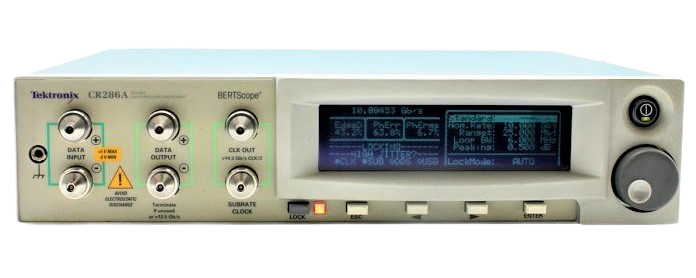

Tektronix CR286A 28.6 Gb/s Clock Recovery Instrument

The Tektronix CR286A is a high-performance clock recovery instrument designed to support advanced high-speed standards, such as 100 Gb Ethernet (100 GbE) and OIF-CEI 28G. With a maximum data rate of 28.6 Gb/s, this instrument is essential for testing and validating high-speed serial data communication systems.

Key Features:

• High Data Rate Support: Operates up to 28.6 Gb/s, making it ideal for next-generation data communication standards.
• Jitter Analysis: Offers powerful jitter measurement capabilities, including frequency-gated and duty cycle-dependent jitter analysis.
• High Sensitivity: Available with an optional high-sensitivity mode (Option HS), allowing the instrument to handle low-amplitude signals down to 40 mV (single-ended) or 20 mV (differential).
• Equalization: Built-in linear equalization helps recover clocks under challenging conditions, such as closed-eye signals.
• Compliance Testing: Compliant with major high-speed serial data standards, providing reliable performance for industry-standard compliance tests.

Technical Specifications:

• Data Rate: 150 Mb/s to 28.6 Gb/s
• Input Sensitivity: Down to 40 mV (single-ended), 20 mV (differential) with Option HS
• Loop Bandwidth: Variable from 100 kHz to 12 MHz, extendable to 24 MHz with optional configurations
• Interfaces: Compatible with various Tektronix sampling modules and external clock recovery instruments

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
