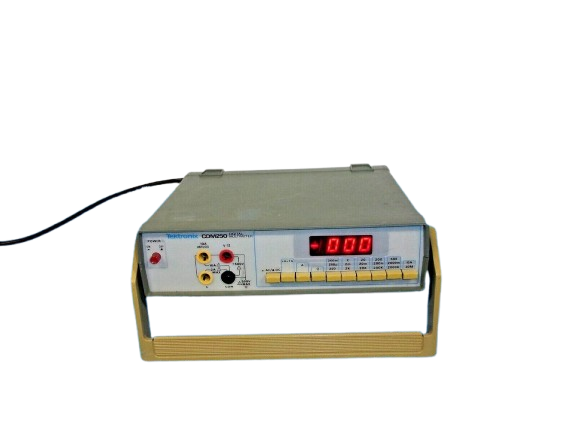

Tektronix CDM250 Digital Multimeter

The Tektronix CDM250 is a reliable and versatile digital multimeter designed for a wide range of applications, including laboratory, field repair, and production testing. This 3½-digit multimeter provides precise measurements of voltage, current, and resistance with high accuracy and ease of use. It features a compact and durable design, making it suitable for both bench-top and portable applications.

Key Features:

• Measurement Capabilities:
  • DC Voltage: Ranges from 0.2V to 200V with a maximum of 500V, offering a 0.5% + 1 digit accuracy.
  • AC Voltage: Ranges from 0.2V to 200V with a maximum of 500V, providing a 1.0% + 4 digits accuracy (for 45Hz to 500Hz).
  • DC Current: From 200?A to 200mA in decade ranges, with 2A and 10A ranges offering a 1% + 3 digits accuracy.
  • AC Current: From 200?A to 2A in decade ranges, with a 10A range, featuring a 1.5% + 4 digits accuracy (for 45Hz to 500Hz).
  • Resistance: Measures from 200? to 20M? in decade ranges, with current ranges from 2.5mA to 50nA.
• Display: 3½-digit LED display for clear and accurate readings.
• Safety: Equipped with overload protection and is UL listed and CSA certified.
• Design: Compact design with a multiposition handle that folds under the instrument, allowing easy stacking and portability.

Technical Specifications:

• DC Voltage Range: 0.2V to 200V, 500V (0.5% + 1 digit)
• AC Voltage Range: 0.2V to 200V, 500V (1.0% + 4 digits)
• DC Current Range: 200?A to 200mA, 2A, 10A (1% + 3 digits)
• AC Current Range: 200?A to 2A, 10A (1.5% + 4 digits)
• Resistance Range: 200? to 20M?

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
