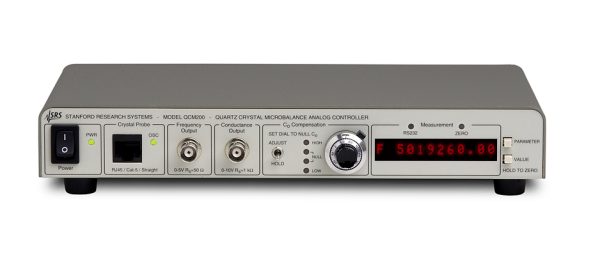

Stanford Research Systems QCM200 Data Generator

The Stanford Research Systems QCM200 Quartz Crystal Microbalance is a highly precise instrument designed to measure mass and viscosity in processes occurring at or near surfaces or within thin films. This system is ideal for applications in surface science, biochemistry, and materials research, providing accurate and reliable data for various experimental needs.

Key Features

• Mass and Viscosity Measurement: Measures the resonant frequency and resistance of a 5 MHz, AT-cut quartz crystal. The resonant frequency changes linearly with the mass of material deposited on the crystal surface, and the resistance changes with the viscosity/elasticity of the material in contact with the crystal.
• High Sensitivity: Can measure mass ranging from micrograms to fractions of a nanogram, with detection limits corresponding to submonolayers of atoms.
• Rugged and Versatile Design: Includes a compact and easy-to-use crystal holder, suitable for both liquid and gas environments. The holder can handle heavy loads up to 5 k?, making it ideal for lossy films and highly viscous liquids.
• Automatic Gain Control: Ensures the quartz crystal receives the necessary signal amplitude to achieve series resonance and monitor energy dissipation.
• Data Acquisition and Analysis Software: The system comes with Windows and Mac software for real-time data acquisition, display, analysis, and storage. The software allows for viewing both frequency and resistance trends, with user-tags for important events.

Technical Specifications

• Frequency: 5 MHz
• Resolution: 0.01 Hz for frequency, 5 digits for resistance (0 to 5000 ?)
• Measurement Range: Micrograms to fractions of a nanogram
• Interfaces: RS-232 for PC control and data acquisition
• Power Supply: External +24 VDC

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
