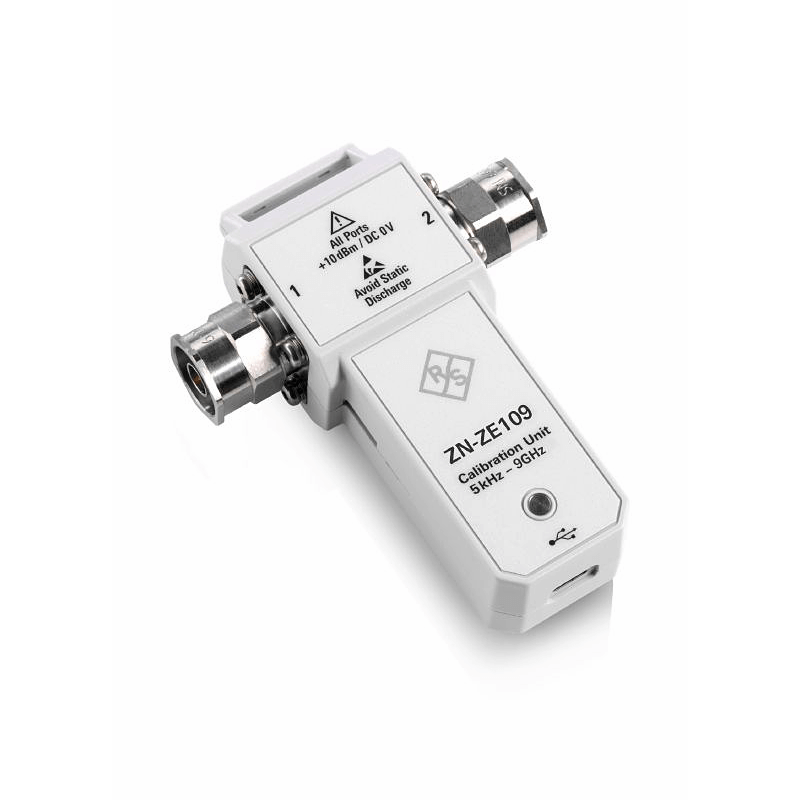

Rohde and Schwarz ZN-ZE109 Calibration Unit, 2 ports, 5 kHz to 9 GHz

The Rohde and Schwarz ZN-ZE109 Calibration Unit is a robust and efficient solution designed for the accurate calibration of vector network analyzers (VNAs). Covering a frequency range from 5 kHz to 9 GHz, this unit is perfect for ensuring the precision of measurements in both development and production environments. It provides a streamlined, user-friendly calibration process that minimizes setup time while maximizing reliability and accuracy.

Key Features

• Wide Frequency Range: Operates from 5 kHz to 9 GHz, suitable for a variety of RF and microwave applications.
• Configurable Ports: The unit features two ports that can be configured as either N-type or 3.5 mm-compatible connectors. Each port can be individually set as male or female, offering flexibility for different testing needs.
• Automatic Detection and Configuration: Supports plug-and-play calibration with automatic detection via a USB connection. All necessary data is transferred to the VNA, simplifying the calibration process.
• Lightweight and Portable: Designed to be lightweight and rugged, the ZN-ZE109 is easy to transport, making it ideal for both laboratory and field use.
• High Accuracy and Efficiency: Ensures precise calibration, aiding in the accurate measurement of RF and microwave signals.

Technical Specifications

• Frequency Range: 5 kHz to 9 GHz
• Connector Type: N (m/f) or 3.5 mm-compatible (m/f)
• Number of Ports: 2
• Impedance: 50 Ohms
• Series: ZN-Z Series

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
