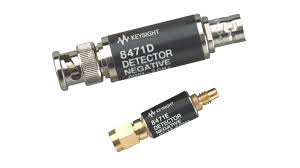

Keysight 8471E Planar-Doped Barrier Diode Detector, 0.01 to 12 GHz

The Keysight 8471E Planar-Doped Barrier Diode Detector is a high-performance, broadband detector designed for accurate RF and microwave power measurements. Covering a wide frequency range from 10 MHz to 12 GHz, the 8471E is ideal for applications in R&D, manufacturing, and field testing environments. Its planar-doped barrier diode technology ensures low SWR and excellent sensitivity, making it an essential tool for engineers and technicians requiring precise power detection across a broad spectrum.

Key Features:

1. Wide Frequency Range:
   • Operates from 10 MHz to 12 GHz, providing broad coverage for various RF and microwave applications.
   • Suitable for testing and measuring across a wide range of frequencies.
2. High Sensitivity and Accuracy:
   • Planar-doped barrier diode technology ensures high sensitivity and accurate power measurements.
   • Low SWR minimizes measurement uncertainty and reflections.
3. Excellent Linearity:
   • Provides excellent linearity over a wide dynamic range, ensuring precise and reliable measurements.
   • Ideal for applications requiring accurate power detection and monitoring.
4. Low SWR:
   • Low Standing Wave Ratio (SWR) reduces measurement errors caused by signal reflections.
   • Enhances measurement accuracy and repeatability.
5. Robust and Durable Design:
   • Durable construction ensures long-term reliability and consistent performance in various testing environments.
   • Designed to withstand rigorous use in both laboratory and field settings.
6. Easy Integration:
   • Compact and lightweight design for easy integration into existing test setups.
   • Compatible with a wide range of Keysight and other RF test equipment.

Technical Specifications:

• Frequency Range: 10 MHz to 12 GHz
• Sensitivity: -50 dBm to +20 dBm (typical)
• SWR: < 1.25 (typical)
• Linearity: ±0.5 dB over a 60 dB dynamic range
• Connector Type: Type-N (m)
• Operating Temperature: -55°C to +85°C
• Dimensions: 25 mm x 50 mm x 75 mm
• Weight: Approximately 100 g

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.
