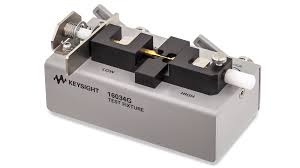

Keysight 16034G SMD Test Fixture, DC to 40MHz, BNC, 4 Terminal-Pair

The Keysight 16034G SMD Test Fixture is designed for precise testing and measurement of surface mount devices (SMDs) across a wide frequency range from DC to 40 MHz. This fixture uses a 4-terminal pair configuration with BNC connectors, providing accurate and reliable measurements for various SMD components. The 16034G is ideal for R&D, manufacturing, and quality control environments where high precision and repeatability are crucial.

Key Features:

1. Wide Frequency Range:
   • Supports a frequency range from DC to 40 MHz.
   • Suitable for a broad spectrum of testing applications for SMD components.
2. 4-Terminal Pair Configuration:
   • Utilizes a 4-terminal pair setup to ensure accurate impedance measurements.
   • Minimizes the effects of lead inductance and contact resistance for precise results.
3. High-Quality BNC Connectors:
   • Equipped with BNC connectors for secure and reliable connections.
   • Ensures consistent signal integrity and minimizes signal loss.
4. Versatile Application:
   • Ideal for testing a wide variety of SMD components including capacitors, resistors, and inductors.
   • Compatible with various Keysight LCR meters and impedance analyzers.
5. User-Friendly Design:
   • Simple and intuitive setup for easy operation.
   • Provides stable and repeatable measurements, essential for quality control and R&D.
6. Durable Construction:
   • Built with high-quality materials to ensure long-term durability and reliability.
   • Designed to withstand frequent use in demanding testing environments.

Technical Specifications:

• Frequency Range: DC to 40 MHz
• Connector Type: BNC
• Configuration: 4-terminal pair
• Compatible Components: SMD capacitors, resistors, inductors, and other SMD components
• Compatibility: Compatible with various Keysight LCR meters and impedance analyzers
• Dimensions:
  • Fixture size: Approximately 150 mm x 100 mm x 50 mm
• Weight: Approximately 500 g
