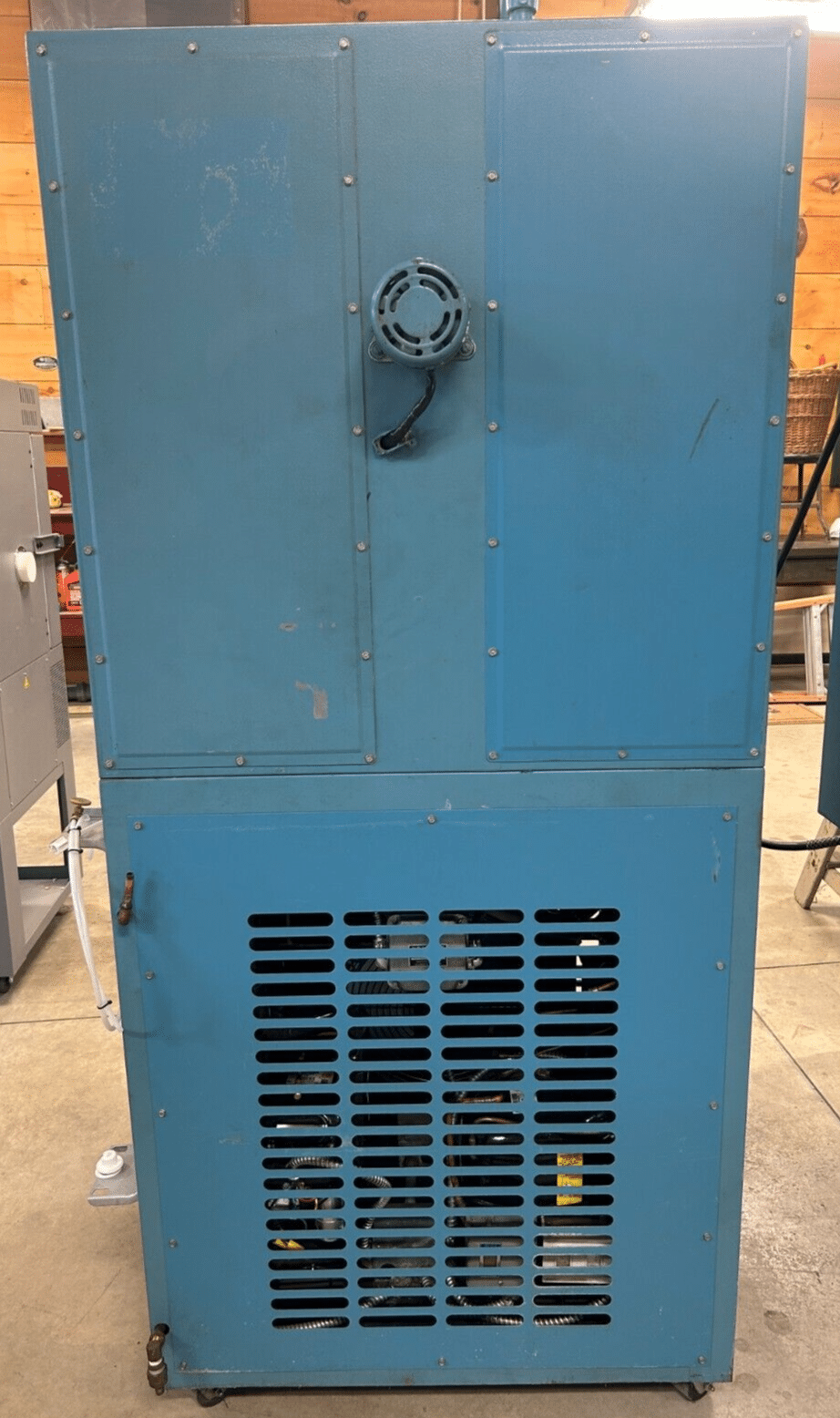

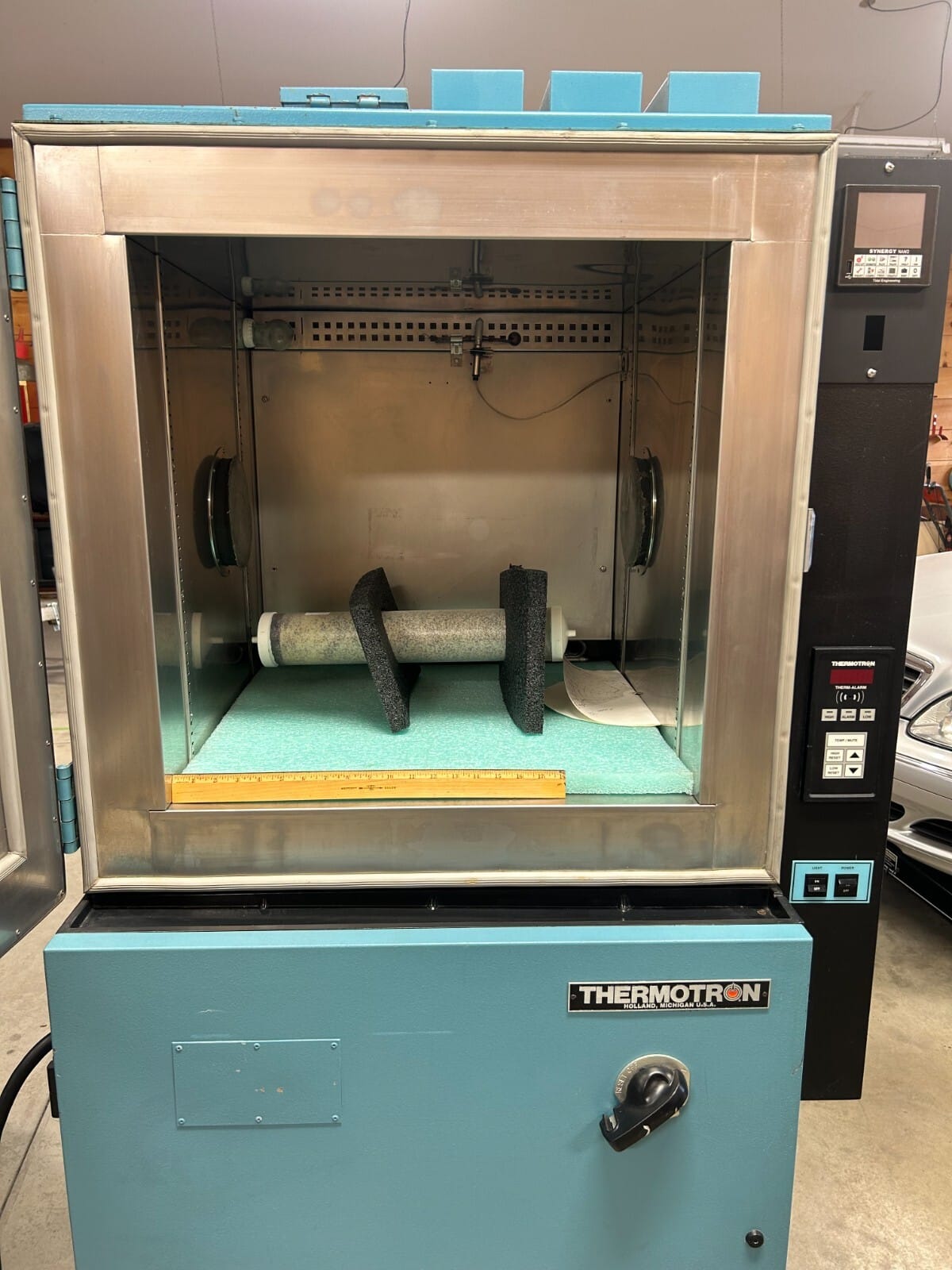

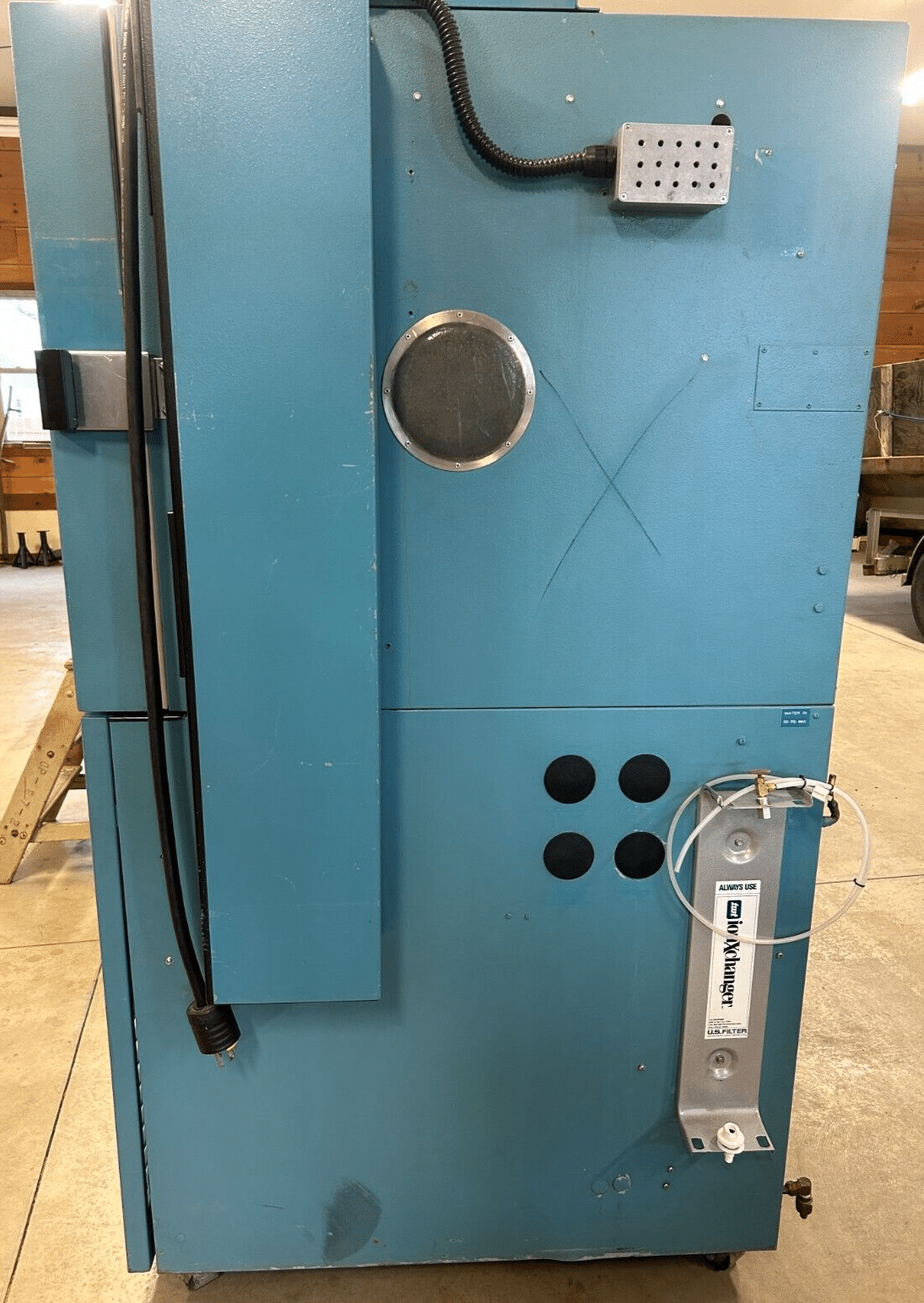

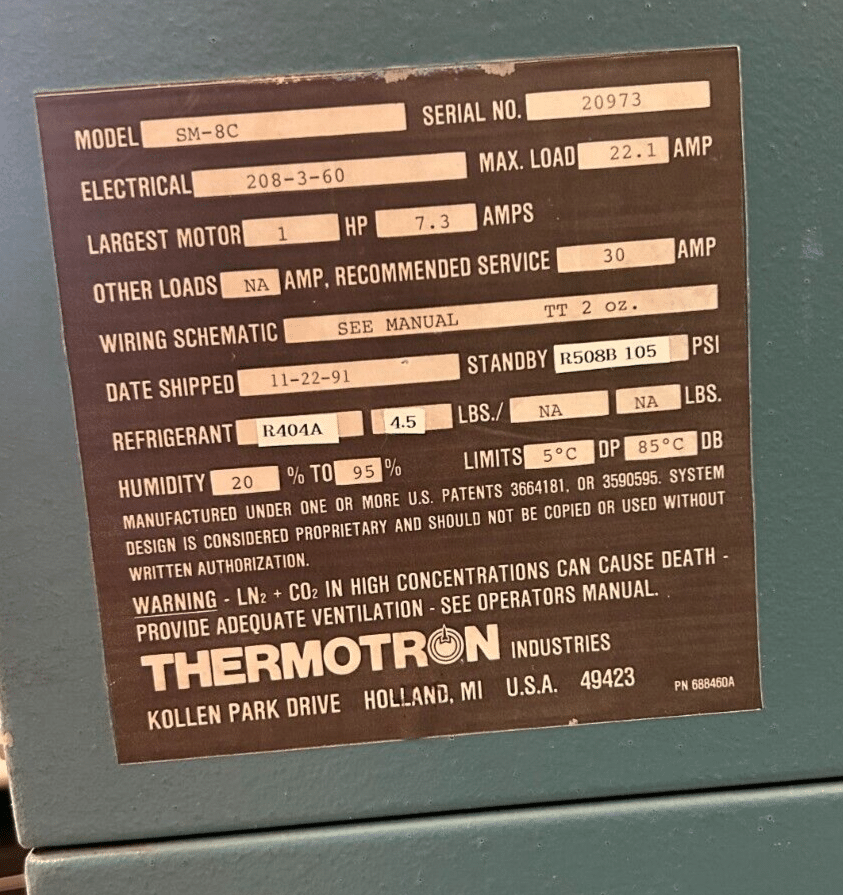

Thermotron SM-8C Chamber **w/ NEW SYNERGY NANO CONTROLLER** (-77°C to 177°C)

Chamber Characteristics
Temperature Range: -77C to +177C

Tidal Engineering Synergy Nano Controller – 1/4 DIN Process Controller & Data Logger

Key Features:

• Four-channel environmental test chamber controller
• Automatic heating/cooling mode selection
• Supports temperature, vibration, altitude, and humidity control
• Microsoft Windows™ CE 5 operating system
• Remote monitoring via RS-232, Ethernet, and GPIB (optional)

Display & Interface:

• 3.8” color TFT LCD (320 x 240 resolution)
• LED backlight with resistive touch screen
• Windows-friendly programming interface

Data Logging & Storage:

• Logging interval: 1 second to 60 minutes
• 1 GB removable SD flash memory
• USB host & device support
• Real-time clock with battery backup

Inputs & Outputs:

• Universal Inputs (2): RTD, thermocouples, voltage, current
  • RTD: -200°C to 630°C, ±0.05 Ohms
  • Thermocouples: Types E, B, J, K, R, S, T (±1°C accuracy)
  • Process Current: 16-bit resolution, 4-20 mA (±0.05%)
  • Process Voltage: 16-bit resolution, 0-5 VDC (±0.05%)
• Analog Outputs (2):
  • 0-5 VDC (±5mV), 0-10 VDC (±10mV, optional), 4-20 mA (±0.1%, optional)
• Main Outputs (6):
  • DC (0-24 VDC, 50 mA, open collector)
  • Relay (1.5 A, 250 VAC)
  • SSR (1 A, 250 VAC)
• Event Outputs (6, optional):
  • Triac (3A, 100-240VAC)
  • Relay (6A, 100-240VAC)
• Digital Inputs (4, expandable to 16)
• Auxiliary Outputs (6): 0-24 VDC, 50 mA, open collector

Connectivity & Communication:

• 10/100 BaseT Ethernet (supports email, Telnet, FTP, WebTouch™)
• RS-232 serial communication
• IEEE 488/GPIB (optional)
• USB ports for flash storage, mouse, keyboard, barcode scanner

Alarm Functions:

• Low program/storage memory, sensor failures, high/low process limits, and user-defined alarms
• Internal communication failure alerts

Compliance & Safety:

• Touch-safe terminals
• CE certified: EN 61010-1, EN 61326
• IP-65 & NEMA 4X rating

Power & Environmental Conditions:

• 100-240 VAC, 47-63 Hz, 10W power consumption
• Operating temperature: 10°C to 30°C
• Humidity: 0-90% RH (non-condensing)

Physical Specifications:

• Dimensions: 3.78” W x 3.78” H x 3.94” D
• Weight: 1.5 lbs.

Included Part Numbers (Model Variants & Accessories):

• TE1858-1: DC Outputs
• TE1858-2: Relay Outputs
• TE1858-3: SSR Outputs
• TE2251-6: Triac Output Board, 6-Channel
• TE1708-6: Relay Output Board, 6-Channel
• TE1865: Synergy LabVIEW Driver
• TE1588: Synergy488 GPIB Option
• TE1803: Signal Conditioner (5V, 10V, 4-20mA)
• TE1299-16: Synergy UUT Thermocouple Monitor

Perfect for environmental test chambers and process ovens. Easily integrates into existing setups for advanced process control and data logging.
