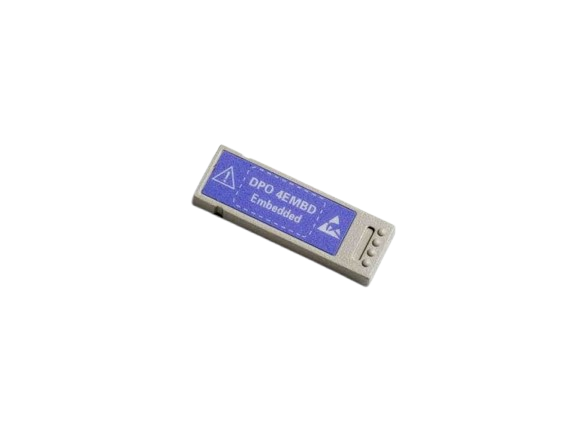

Tektronix DPO4EMBD Embedded Serial Triggering and Analysis

The Tektronix DPO4EMBD is an embedded serial triggering and analysis module designed for use with Tektronix MSO/DPO4000B series oscilloscopes. It enhances the oscilloscope’s capabilities by enabling comprehensive triggering and analysis on I²C and SPI serial buses. This module simplifies the debugging of complex serial communication by providing robust tools for packet-level inspection and analysis.

Key Features:

1. Automated Serial Triggering and Decode:
   • Triggers on all critical elements of I²C and SPI buses, such as addresses, data content, and unique identifiers.
   • Decodes each message’s critical elements, eliminating the need for manual counting of 1s and 0s.
2. Advanced Search and Analysis Tools:
   • Enables searching through long acquisitions using user-defined criteria to find specific messages.
   • Includes a search mark table that provides a tabular view of the events found during an automated search.
   • Event table shows decoded serial bus activity in a tabular, time-stamped format for a quick summary of system activity.
3. Data Export Capabilities:
   • Export search mark table data and event table data to .csv files for further analysis and reporting.
4. Enhanced Bus Display and Decoding:
   • Provides a high-level, combined view of individual bus signals, making it easy to identify packet components.
   • Displays decoded packet values in hex, binary, or ASCII formats directly on the bus waveform, simplifying the analysis process.
5. Compatibility:
   • Compatible with Tektronix MSO4000B, DPO4000B Mixed Signal Oscilloscopes series.

Technical Specifications:

• Supported Buses: I²C and SPI
• Trigger Sources: Analog channels 1-4, digital channels D0-D15
• Thresholds: Per-channel thresholds for accurate triggering
• Display Modes: Bus only, bus and waveforms, event table
• Decode Formats: Hex, binary, ASCII

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
