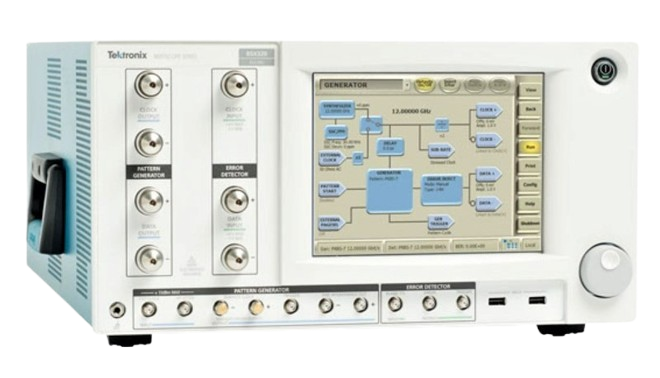

Tektronix BSA286CL BERTScope 28.6 Gb/s Bit Error Rate Analyzer

The Tektronix BSA286CL is a high-performance Bit Error Rate Tester (BERT) designed to support data rates up to 28.6 Gb/s. This instrument is ideal for advanced signal integrity testing and characterization of high-speed digital communication systems. The BSA286CL provides comprehensive error analysis and pattern generation, ensuring accurate and thorough bit error rate detection and analysis.

Key Features:

• High Data Rate Support: Capable of testing data rates from 1 Gb/s to 28.6 Gb/s.
• Accurate Jitter Measurement: Supports Total Jitter (TJ), Random Jitter (RJ), and Deterministic Jitter (DJ) measurements compliant with MJSQ jitter methodology.
• Flexible Clocking: Features a generator clock path for sub-rate system clocks and adjustable modulation options for Spread Spectrum Clocking (SSC).
• Mask Compliance Contour Testing: Enables mask tests to assure specified eye openings, essential for standards such as XFP/XFI and OIF CEI.
• PatternVu Option: Includes a software-implemented FIR filter for viewing eye diagrams after receiver equalization, enhancing physical measurements.
• Eye Diagram Analysis: Offers deep eye diagram analysis, sampling every point on the perimeter of industry-standard masks with unmatched depth.

Technical Specifications:

• Data Rates: 1 Gb/s to 28.6 Gb/s
• Clock Outputs: 1-28.6 GHz, with sub-rate clock outputs ranging from 0.250 to 3.575 GHz
• Jitter Analysis: Supports Sinusoidal Jitter (SJ) with internal frequency ranges from 1 kHz to 100 MHz
• Protocol Support: Compliant with 802.3ba for 100G Ethernet silicon characterization

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
