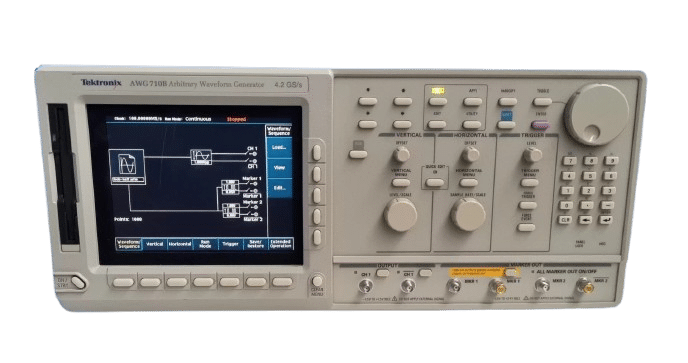

Tektronix AWG710B Arbitrary Waveform Generator

The Tektronix AWG710B is a high-performance Arbitrary Waveform Generator (AWG) designed to meet the demanding needs of advanced signal testing and simulation. With a sample rate of 4.2 GS/s, it delivers world-class signal fidelity, making it an essential tool for engineers working in fields such as disk drive testing, communications, and semiconductor design.

Key Features:

• High Sample Rate: Capable of up to 4.2 GS/s, allowing for high-resolution signal generation.
• Advanced Sequencing: Supports complex waveform sequencing with up to 8,000 steps and repeat counters up to 65,536.
• Waveform Memory: Offers a memory depth of up to 32,400,000 points, expandable to 64,800,000 points with optional upgrades.
• Flexible Waveform Creation: Includes AXW100 ArbExpress software for easy waveform import and creation, supporting standard waveforms and custom sequences.
• Extended Operation Modes: Supports continuous, triggered, gated, and enhanced run modes for versatile testing scenarios.
• Synchronous Operation: Allows synchronization of two AWG710B units for 2-channel, 4.2 GS/s operation, ideal for multi-channel applications.
• Built-in Applications: Facilitates the creation of standard waveforms for disk drive read channels and communication signals up to 4.2 Gb/s.

Technical Specifications:

• Channels: 1
• Sample Rate: Up to 4.2 GS/s
• Vertical Resolution: 8 bits
• Waveform Memory: Up to 32,400,000 points (expandable to 64,800,000 points)
• Frequency Range: 1.000 Hz to 400.0 MHz
• Amplitude Range: 20 mV to 2 V peak-to-peak into 50 ?
• Offset Range: ±0.5 V into 50 ?
• Clock Generator: Internal clock with ±1 ppm accuracy
• Phase Noise: -65 dBc/Hz at 10 kHz offset (4.2 GS/s)

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
