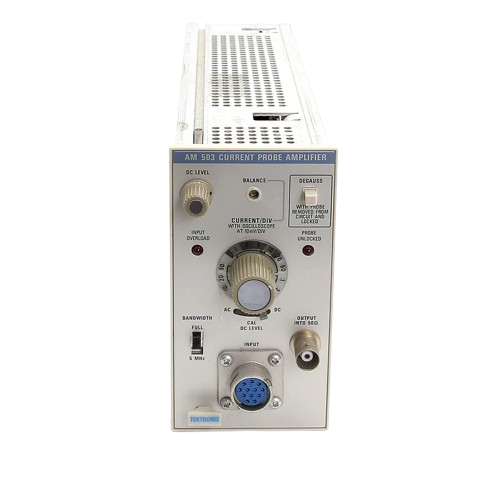

Tektronix AM503 Current Probe Amplifier

The Tektronix AM503 Current Probe Amplifier is a specialized device designed for precise current measurement and display on oscilloscopes. This amplifier allows for accurate monitoring of AC/DC currents by converting the current flow into a proportional voltage signal that can be displayed on any oscilloscope with a sensitivity of 10 mV/div, a 50-ohm or 1 megohm input, and at least 100 MHz bandwidth.

Key Features:

• Wide Bandwidth: Supports current measurements up to 50 MHz with the A6302 probe, and up to 15 MHz with the A6303 probe.
• High Sensitivity: Compatible with a variety of Tektronix current probes, including A6302, A6303, P6302, and P6303.
• Flexible Input Range: Can measure currents up to 20A for the A6302 probe and up to 100A for the A6303 probe.
• Calibrated Steps: Features 12 calibrated attenuator steps in a 1-2-5 sequence for precise measurement adjustments.
• Indicator Lighting: The knob-skirt is illuminated to indicate the current per division setting, providing easy visibility and adjustment.

Technical Specifications:

• Maximum Input Current: 20A (A6302), 100A (A6303)
• Bandwidth: >50 MHz (A6302), >15 MHz (A6303)
• Rise Time: <7 ns (A6302), <23 ns (A6303)
• Deflection Factor: 1 mA/div to 5 A/div (A6302), 20 mA/div to 50 A/div (A6303)
• Weight: 4 lbs
• Dimensions: Single-width module suitable for TM500 or TM5000 series mainframes
