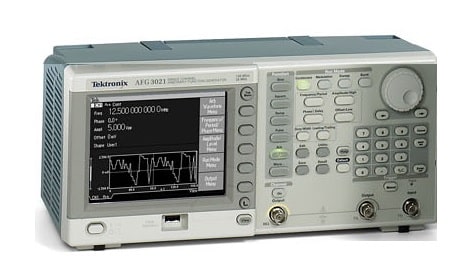

Tektronix AFG3021B Arbitrary Waveform Generator, 25 MHz, 1 Channel

The Tektronix AFG3021B is a high-performance arbitrary waveform generator designed to meet the needs of a wide range of applications, including electronic test and design, sensor simulation, functional test, and education and training. It offers unmatched performance, versatility, and intuitive operation, making it one of the most useful instruments in its category.

Key Features:

• High Frequency Output: The AFG3021B supports sine wave outputs up to 25 MHz and arbitrary waveforms up to 12.5 MHz.
• High Sample Rate: Provides an arbitrary waveform sample rate of 250 MS/s, ensuring high-resolution signal generation.
• Vertical Resolution: 14-bit vertical resolution offers precise signal representation.
• Waveform Memory: Capable of storing waveforms up to 128 K in length.
• Display: 5.6-inch color TFT LCD provides clear and detailed visualization of settings and waveform shapes.
• Versatile Waveforms: Generates 12 standard waveforms including sine, square, pulse, ramp, triangle, and more.
• Modulation Capabilities: Supports AM, FM, PM, FSK, PWM modulation.
• Connectivity: Equipped with USB, GPIB, and LAN interfaces for easy connectivity and data transfer.
• Intuitive Operation: Multi-language interface and intuitive operation save setup time.

Technical Specifications:

• Channels: 1
• Maximum Output Frequency: 25 MHz for sine waveforms
• Sample Rate: 250 MS/s
• Vertical Resolution: 14 bits
• Waveform Memory: 128 Kpoints
• Output Voltage Range: Up to 20 V peak-to-peak into 50 ? loads
• Modulation Types: AM, FM, PM, FSK, PWM
• Display: 5.6-inch color TFT LCD
• Connectivity: USB, GPIB, LAN

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
