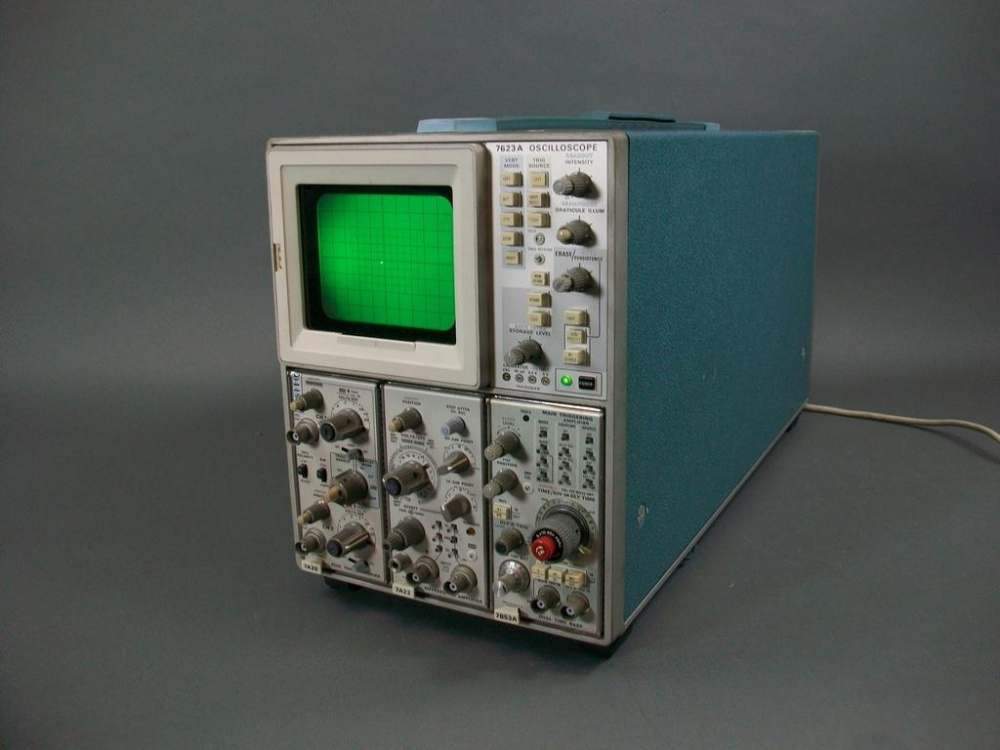

Tektronix 7623 Oscilloscope

The Tektronix 7623 is a high-performance analog storage oscilloscope designed for a wide range of applications in electronics and signal testing. This oscilloscope is known for its reliable performance and flexibility, making it a valuable tool for engineers and technicians.

Key Features:

• Bandwidth: 100 MHz, allowing for the observation of high-frequency signals.
• Display Type: CRT monochrome display, providing clear and detailed signal visualization.
• Display Size: 13 cm, suitable for precise signal analysis.
• Rise Time: 3.5 ns, ensuring fast signal response.
• Time Base Range: Main time base with a minimum of 5 ns/div, offering detailed time domain measurements.
• Storage Modes: Bi-stable and persistence display modes for capturing transient events and observing signal changes over time.

Technical Specifications:

• Form Factor: Mainframe
• Dimensions: Width – 221 mm (8.7 in), Height – 305 mm (12 in), Length – 597 mm (23.5 in)
• Weight: Approximately 30 pounds
• Vertical Deflection System: Capable of handling a variety of signals with different amplitude ranges and frequencies.

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
