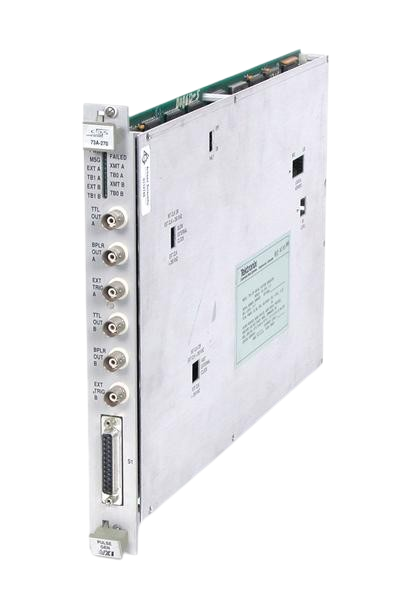

Tektronix 73A-270 Arbitrary Pulse / Pattern Generator

The Tektronix 73A-270 is an Arbitrary Pulse/Pattern Generator Module designed for high-precision signal generation. It is built to conform to the VXIbus Specification, integrating seamlessly into a VXIbus system. This module is ideal for applications requiring complex pulse and pattern generation, such as digital design verification, semiconductor testing, and telecommunications.

Key Features:

• Dual Independent Channels: Provides two independent output channels with programmable pulse and pattern generation capabilities.
• High Precision: Generates accurate and reliable TTL or bipolar pulse and pattern outputs.
• Flexible Programming: Supports an extensive range of pulse and pattern sequences, including active and inactive states.
• VXIbus Compatibility: Designed to fit into a VXIbus card cage, ensuring easy integration into existing test systems.

Technical Specifications:

• Channels: 2
• Output Voltage: TTL or bipolar (+/- 17.4V)
• Pattern Length: 1600-word six-decimal programmable length
• Interfaces: VXIbus backplane interface for system integration
• Frequency Range: Variable based on user-defined patterns

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
