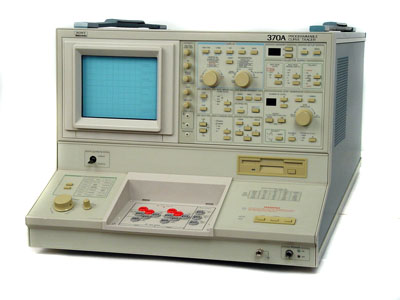

Tektronix 370 Programmable Curve Tracer

The Tektronix 370 is a high-performance, stand-alone, GPIB-programmable digital curve tracer designed to provide comprehensive static and dynamic semiconductor device measurements. It is capable of characterizing a wide range of two-, three-, and four-terminal devices, including diodes, bipolar transistors, FETs, SCRs/thyristors, optoisolators, and integrated circuits. The 370 Curve Tracer is known for its precision and versatility, making it a valuable tool in R&D labs, manufacturing, and quality control environments.

Key Features:

• High Voltage Testing: Capable of testing up to ±2000 V in the collector mode.
• High Current Testing: Provides current testing up to ±20 A.
• Step Generator: Can output up to ±40 V and ±2 A.
• Digital Storage: Includes bubble memory for storing up to 16 test setups and 16 families of curves.
• Interfaces: Equipped with GPIB and plotter interfaces for data communication and automation.
• On-Screen Readout: Displays control settings and cursor values directly on the screen.
• Waveform Analysis: Offers digitized waveforms, waveform comparisons, and envelope display for thorough analysis.

Technical Specifications:

• Test Voltage: ±2000 V
• Test Current: ±20 A
• Step Generator Output: ±40 V, ±2 A
• Vertical Sensitivity: 100 pA/Div to 2 A/Div
• Horizontal Sensitivity: 5 mV/Div to 500 V/Div
• Resolution: 10 bits
• Power Consumption: Typically 120 W, maximum 400 W
• Weight: 37 kg (82 lbs)

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.
