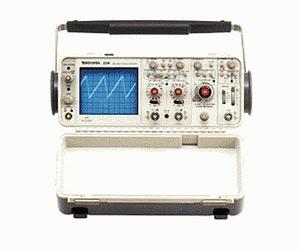

Tektronix 2336 Analog Oscilloscope, 100 MHz, 2-Channel

The Tektronix 2336 is a ruggedized, portable dual-channel analog oscilloscope designed for a variety of field and lab applications. It offers reliable performance with a bandwidth of 100 MHz, making it suitable for capturing and analyzing high-frequency signals.

Key Features:

• Bandwidth: 100 MHz, providing the capability to accurately capture high-frequency signals.
• Channels: Two independent channels for versatile signal analysis.
• Deflection Factor: 5 mV/div to 5 V/div in a 1-2-5 sequence, with a ±3% accuracy. A variable control can increase sensitivity to at least 2 mV/div.
• Maximum Input Voltage: 400 V (DC + peak AC) or 500 V (peak-to-peak AC at ? 1 kHz).
• Sweep Speeds:
  • A Time Base: 0.5 s/div to 50 ns/div, extendable to 5 ns/div with x10 magnifier.
  • B Time Base: 50 ms/div to 50 ns/div, extendable to 5 ns/div with x10 magnifier.
• Triggering: Various trigger sources including VERT MODE, CH 1, CH 2, LINE, EXT, and EXT ÷ 10.
• Vertical Modes: CH1, ALT, CHOP, ADD, CH2, AUTO, X-Y, TRIG VIEW, BW LIMIT (20 MHz).
• Horizontal Modes: A or B Sweep, A/B Alternate, B Delayed, X-Y.
• Display: Features a 3.5-digit LCD for delta time measurements and B trigger functions.

Technical Specifications:

• Input Impedance: 1 M? ±2% // 20 pF ±10%.
• Rise Time: 3.5 ns.
• Display Size: 5.12 inches.
• Power Requirements: 40 W max, 90 – 250 V AC, 48 – 440 Hz.
• Probes: Typically includes two P6101 probes.

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
