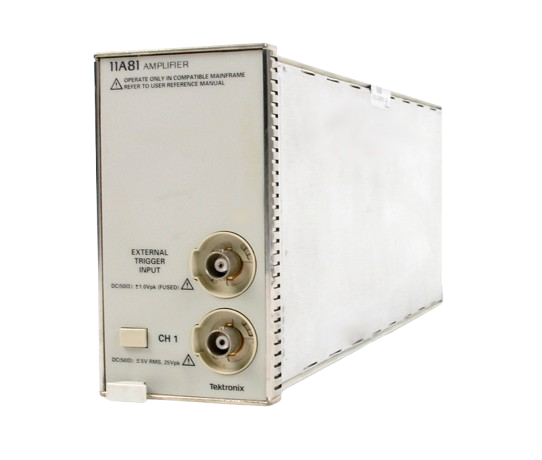

Tektronix 11A81

The Tektronix 11A81 is a high-performance single-channel amplifier designed to enhance the signal amplification process in electronic systems. It is compatible with the Tektronix 11400 series oscilloscopes, providing exceptional performance for high-speed signal applications.

Key Features:

• Frequency Range: Up to 3 GHz, suitable for a wide range of signal applications.
• Rise Time: Less than 130 ps, ensuring rapid signal response.
• Deflection Factor: Ranges from 10 mV to 1 V/div in 1-2-5 sequence for precise measurements.
• Fast Overdrive Recovery: Quickly recovers from signal overloads to maintain accuracy.
• Noise Performance: Low noise figure, providing clear signal amplification with minimal distortion.
• Compact Design: Modular plug-in design for easy integration into existing setups.
• Versatility: Can be used in combination with other modules for enhanced functionality.

Technical Specifications:

• Channels: 1
• Bandwidth: Up to 3 GHz
• Input Impedance: 50 ohms
• Output Impedance: 50 ohms
• Maximum Output Voltage: Varies depending on operating mode
• Noise Figure: Low, varies depending on operating mode
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -20°C to 75°C
• Power Requirements: 100-240V AC, 50/60Hz
• Dimensions: 1.7? x 4.5? x 8.5? (43mm x 114mm x 216mm)
• Weight: 1.2 lbs (0.54 kg)

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
