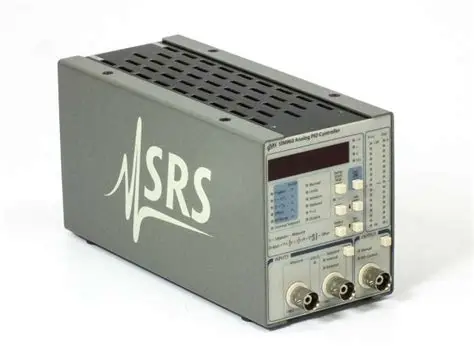

Stanford Research Systems SIM960 Analog PID Controller, 100 kHz

The Stanford Research Systems SIM960 is a high-performance analog PID controller designed to meet the demanding needs of various control applications. Combining analog signal handling with digital control, the SIM960 ensures precise and stable control without discrete time or quantization artifacts, making it ideal for high-bandwidth control loops up to 100 kHz.

Key Features

• Analog Signal Path with Digital Control: Ensures accurate and stable control with minimal noise and high fidelity.
• High Bandwidth: Capable of controlling loops with a bandwidth up to 100 kHz, suitable for fast-response applications.
• Low-Noise Front End: Designed to handle low-level signals with minimal noise interference, ideal for sensitive applications.
• Comprehensive PID Control: Features proportional, integral, and derivative (PID) controls with an offset, each settable to 0.5% precision.
• Anti-Windup and Fast Saturation Recovery: Incorporates conditional integration electronics to prevent windup and facilitate quick recovery from saturation conditions.
• Smooth Ramping and Clamping: The internal ramp generator allows for controlled voltage slew rates between predefined start and stop setpoints, with smooth upper and lower limit clamping to protect against system overload.
• Bumpless Transfer: Ensures smooth transitions from manual to PID control without introducing disturbances.
• Fully Programmable: All functions can be controlled via a computer using the SIM900 mainframe, supporting both RS-232 and GPIB interfaces.

Technical Specifications

• Control Type: Analog, PID + Offset
• Input Range: ±10 V
• Common Mode Range: ±1 V
• Proportional Gain: 10^-1 to 10^3
• Integral Gain: 10^-1 s^-1 to 10^5 s^-1 (effective time constant 10^-5 s to 10 s)
• Derivative Gain: 10^-7 s to 1 s
• Offset: ±10 V, 1 mV resolution
• Bandwidth: 100 kHz
• Propagation Delay: 1 µs (typical)
• Noise: Low noise for sensitive applications

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.
