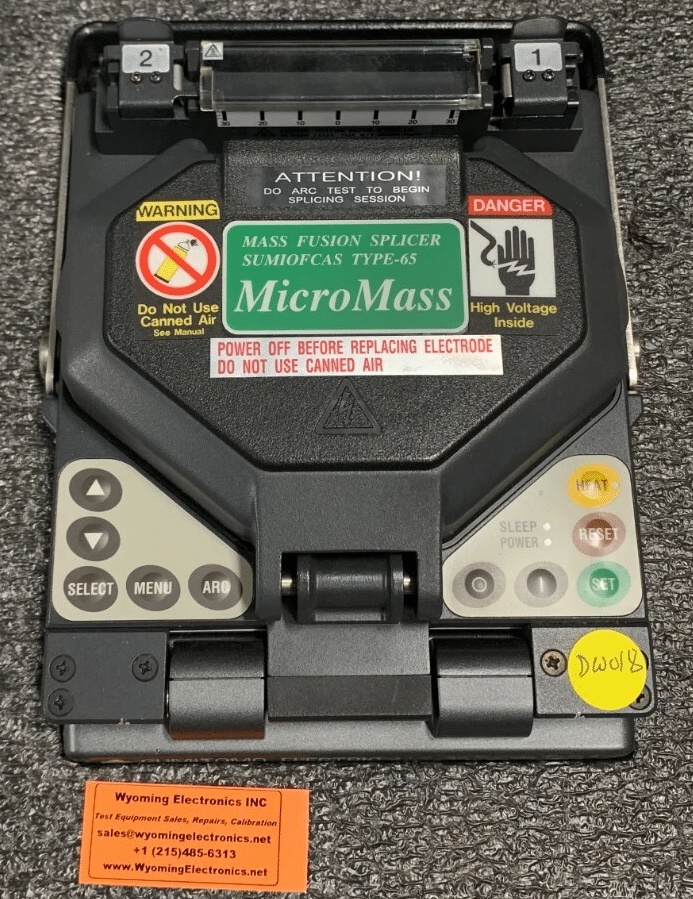

Professional Service & Repair for Sumitomo Type-65 Fusion Splicer

If your Sumitomo Type-65 Fusion Splicer is showing operational issues, performance degradation, or unexpected errors, our expert repair team is ready to restore it to peak operating condition. With years of hands-on experience servicing Sumitomo’s precision splicing platforms, we provide dependable, high-quality repairs designed to extend the life of your equipment and enhance day-to-day reliability.

Comprehensive Repair Services for Sumitomo Type-65 Fusion Splicer

Overview of Common Issues with the Type-65

The Sumitomo Type-65 is a widely used core-alignment fusion splicer known for its portability, durability, and fast splice cycles. However, like any precision optical instrument, it can experience wear, drift, and component failure over time. Common issues include:

Electrode Wear and Arc Instability

The Type-65 relies on clean, properly spaced electrodes to create a stable arc. Contaminated or worn electrodes can cause:

• High splice loss

• Arc discharge errors

• Inconsistent splice results

V-Groove Contamination or Damage

Dust, debris, or physical wear on the V-Grooves can prevent accurate fiber alignment, resulting in:

• Alignment offset

• Excessive loss

• Frequent “Fiber Position Error” messages

Optical System & Camera Problems

The Type-65 uses dual cameras to perform core detection. Issues may include:

• Out-of-focus images

• Contaminated lenses

• CCD/CMOS failure

• Misalignment of the optical path

These problems often show up as poor core alignment, high loss predictions, or inability to complete the splicing cycle.

Heater & Tube-Retention Problems

The heater assembly on Type-65 units can fail due to:

• Weak or burned-out heating elements

• Faulty sensors

• Incorrect heat ramping
  This leads to improperly shrunk sleeves or sleeve slippage during handling.

Battery & Power System Issues

Over time, the Type-65’s lithium-ion battery can lose capacity or fail to charge, causing:

• Shortened runtime

• Unexpected power-downs

• “Battery Error” messages

Software Errors & Calibration Drift

The internal firmware and calibration tables can develop:

• Arc calibration drift

• Incorrect splice estimates

• System freeze or boot errors

All of these issues can be corrected through proper service, calibration, and software resets.

Our Diagnostic and Repair Process

1. Full Diagnostic Evaluation

We begin with a thorough inspection of the splicer including:

• Electrode gap measurement

• V-Groove contamination analysis

• Optical alignment review

• Heater output verification

• Firmware checks and system log review

2. Genuine Sumitomo Parts

All components—electrodes, optical assemblies, heater parts, and boards—are replaced with authentic Sumitomo-compatible parts to maintain factory-level performance.

3. Expert Repair & Calibration

Common procedures include:

• Precision cleaning of V-Grooves and optical components

• Replacing and seating electrodes

• Heater repair or replacement

• Recalibrating arc power and alignment systems

• Firmware updates and core detection optimization

4. End-to-End Testing

Every splicer undergoes:

• Splice quality verification

• Arc calibration testing

• Heater cycle testing

• Alignment accuracy validation

We return your splicer performing at or above OEM specifications.

Why Choose Us for Type-65 Fusion Splicer Repair?

Specialized Expertise

Our technicians are highly experienced with Sumitomo core-alignment splicers, including Type-39, Type-65, Type-66, Type-81, and later models.

Fast Turnaround

We value your time and fiber operations; most repairs are completed quickly and efficiently once approved.

Transparent, Fair Pricing

We provide free evaluation and upfront pricing, with a maximum repair cost of $5,000 depending on parts, labor, and board-level issues.

Exceptional Customer Support

From shipping to final approval, our team keeps you informed every step of the way.

How to Get Your Sumitomo Type-65 Repaired

1. Fill out our RMA form and ship us your defective Type-65.

2. We perform a free evaluation and provide a detailed quote with turnaround time.

3. You choose to approve or decline the repair.

4. We repair and/or return your Sumitomo Type-65 based on your decision.

Trade-In or Upgrade Options

1. Trade In Your Defective Type-65

Receive credit toward a refurbished fusion splicer.

2. Sell Your Type-65 for In-Store Credit

Apply the credit toward any in-stock fiber optic equipment we carry.
