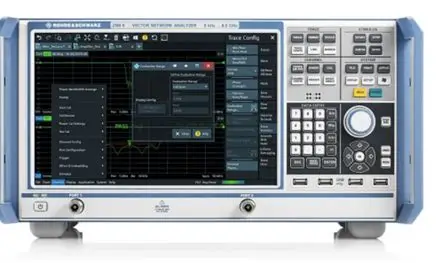

Rohde and Schwarz ZNB40 Vector Network Analyzer

The Rohde and Schwarz ZNB40 Vector Network Analyzer is a high-performance instrument designed to meet the needs of demanding applications in the production and development of RF components, particularly in the mobile radio, aerospace, and electronic goods industries. This mid-range VNA offers a wide frequency range from 100 kHz to 40 GHz, making it ideal for applications such as 5G component characterization, signal integrity measurements, and aerospace and defense (A&D) applications.

Key Features

• Frequency Range: 100 kHz to 40 GHz, covering a broad spectrum suitable for various testing requirements.
• Multi-Port Configuration: Available in two or four-port configurations, enhancing testing flexibility and efficiency.
• High Dynamic Range: Up to 140 dB, ensuring accurate and reliable measurements even at low signal levels.
• Low Trace Noise: Less than 0.004 dB RMS at 10 kHz IF bandwidth, providing precise measurement data.
• High Output Power: Up to +13 dBm, with an electronically adjustable range of more than 95 dB.
• Measurement Speed: Fast measurement times with a typical sweep time of 4.5 ms for 201 points.
• Large Touchscreen Interface: A 12.1-inch touchscreen display for easy operation and review of test results.
• Versatile Applications: Suitable for testing wideband devices under test (DUTs) and components with significant low-frequency behavior.

Technical Specifications

• Frequency Range: 100 kHz to 40 GHz
• Ports: 2 or 4
• Dynamic Range: Up to 140 dB
• Output Power: -60 to +13 dBm
• Power Sweep Range: 73 dB
• Noise Floor: -115 dB
• IF Bandwidth: 1 Hz to 500 kHz
• Harmonics: -30 dBc
• Display: 12.1-inch touchscreen
• Dimensions: 462 mm x 238 mm x 611 mm (18.2 in x 9.4 in x 24.1 in)
• Weight: Approximately 38 kg (83.8 lb)

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
