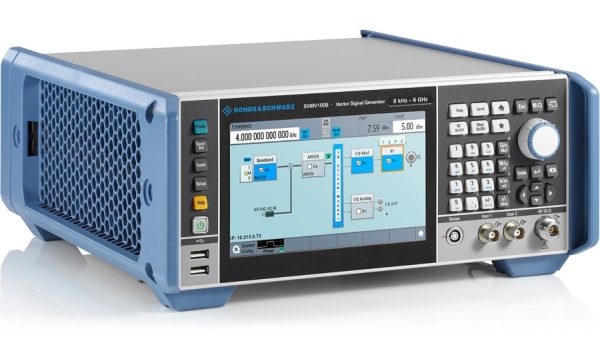

Rohde and Schwarz SMBV100B Vector Signal Generator

The Rohde and Schwarz SMBV100B is a high-performance vector signal generator designed to meet the diverse needs of modern testing environments. With a frequency range from 8 kHz to 6 GHz, this signal generator supports a wide array of digital communication standards, making it an ideal choice for applications in wireless communication, GNSS simulation, and general RF testing.

Key Features

• Wide Frequency Range: Covers from 8 kHz to 3 GHz or 6 GHz, suitable for a broad range of RF applications.
• High Output Power: Delivers up to +34 dBm (1 GHz) and +31 dBm (6 GHz), ensuring robust signal strength.
• Excellent EVM Performance: Achieves an EVM value of less than 0.4% for an LTE signal at +18 dBm output power, ensuring high signal quality.
• Comprehensive Modulation Support: Capable of AM, FM, PM, I/Q, CW, and PSK modulation, providing flexibility for various testing scenarios.
• Advanced GNSS Simulation: Supports multiple GNSS constellations including GPS, GLONASS, BeiDou, Galileo, and SBAS, enabling complex and realistic simulation scenarios.
• User-Friendly Interface: Features a high-resolution 7-inch touchscreen for intuitive operation and efficient configuration.
• Internal Baseband: Allows the generation of signals for all major digital communications standards without requiring external signal generation software.
• Software Upgradable: Additional functionalities can be easily added via software keycodes, enhancing the instrument’s capabilities as needed.

Technical Specifications

• Frequency Range: 8 kHz to 6 GHz
• Output Power: Up to +34 dBm (1 GHz), +31 dBm (6 GHz)
• Modulation Types: AM, FM, PM, I/Q, CW, PSK
• Bandwidth: Up to 500 MHz
• Spurious: Less than -30 dBc
• Connectors: N Type, BNC
• Interfaces: Ethernet, USB, RS-232, GPIB
• Display: 7-inch capacitive touch color display
• Dimensions: 344 mm x 153 mm x 372 mm (13.54 in x 6.03 in x 14.65 in)
• Weight: 10.5 kg (23.15 lb)
• Operating Temperature: 0 to 55°C
• Storage Temperature: -40 to 71°C

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
