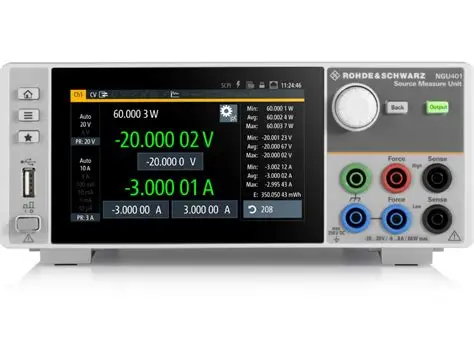

Rohde and Schwarz NGU401 Four-quadrant source measure unit, 60 W

The Rohde and Schwarz NGU401 Four-Quadrant Source Measure Unit (SMU) is a state-of-the-art instrument designed for precision sourcing and measuring in all four quadrants. With a power output of 60 W, this SMU is perfectly suited for a wide range of demanding applications, including battery testing, semiconductor device characterization, and comprehensive electronic testing and development.

Key Features

• Four-Quadrant Operation: Capable of sourcing and sinking current and voltage in all four quadrants, providing comprehensive and versatile testing capabilities.
• High Power Output: Delivers up to 60 W of power, making it suitable for high-demand applications.
• Wide Voltage and Current Range: Offers a broad voltage range from -20 V to +20 V and a current range from -8 A to +8 A (limited to 3 A per channel in certain configurations), ensuring flexibility in testing various devices and components.
• Precision Measurement: Provides highly accurate voltage and current measurements with low noise, essential for sensitive and precise applications.
• Fast and Dynamic Response: Features a high-speed response for dynamic load changes, making it ideal for transient testing.
• Intuitive User Interface: Equipped with a user-friendly interface and touch screen for easy operation and quick setup.
• Versatile Connectivity: Includes various interfaces such as USB, Ethernet, and GPIB for easy integration into automated test systems.

Technical Specifications

• Power Output: 60 W
• Voltage Range: -20 V to +20 V
• Current Range: -8 A to +8 A (with a limitation to 3 A per channel in specific configurations)
• Measurement Accuracy: High precision with low noise
• Interfaces: USB, Ethernet, GPIB
• Display: High-resolution touch screen for easy operation
• Operating Temperature: Designed to function efficiently across a range of environmental conditions

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
