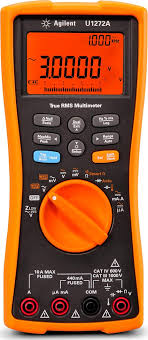

Keysight U1272A Handheld Digital Multimeter, True RMS

The Keysight U1272A is a robust and versatile handheld digital multimeter (DMM) designed for precise and reliable measurements in a wide range of applications. With its advanced True RMS functionality, high accuracy, and user-friendly features, the U1272A is an essential tool for professionals who require dependable performance in both laboratory and field environments.

Key Features:

1. High Precision:
   • Provides 4½ digit resolution for accurate and detailed measurements.
   • True RMS measurements for both AC and DC signals to ensure accuracy in various types of waveforms.
2. Wide Measurement Capabilities:
   • Voltage Measurement: Up to 1000 V DC and 1000 V AC.
   • Current Measurement: Up to 10 A DC and 10 A AC.
   • Resistance Measurement: Up to 100 M?.
   • Capacitance Measurement: Up to 10 mF.
   • Frequency Measurement: Up to 100 kHz.
   • Temperature Measurement: Integrated capability for thermocouple readings.
3. Advanced Features:
   • Dual Display: Simultaneously view multiple measurements for enhanced productivity.
   • Low Pass Filter: For accurate measurements of variable frequency drives.
   • Harmonic Ratio: Identify and measure harmonic distortions in signals.
   • Data Logging: Capture and store measurement data for later analysis.
4. Durability:
   • Water and Dust Resistance: Rated IP54 for use in challenging environments.
   • Drop Protection: Can withstand a 3-meter (10-foot) drop, ensuring durability in field use.
5. User-Friendly Interface:
   • Large, backlit LCD display for clear readings in various lighting conditions.
   • Intuitive navigation with multiple measurement modes.
   • Auto and manual ranging for flexibility in different measurement scenarios.
   • Built-in flashlight for visibility in dimly lit areas.
6. Connectivity and Integration:
   • USB connectivity for easy data transfer to PCs.
   • Compatible with Keysight’s Handheld Meter Logger software for enhanced data analysis.

Technical Specifications:

• Display Resolution: 4½ digits
• Voltage Measurement Range: Up to 1000 V DC / 1000 V AC
• Current Measurement Range: Up to 10 A DC / 10 A AC
• Resistance Measurement Range: Up to 100 M?
• Capacitance Measurement Range: Up to 10 mF
• Frequency Measurement Range: Up to 100 kHz
• Temperature Measurement Range: -200°C to +1372°C (with K-type thermocouple)
• Ingress Protection: IP54 (dust and splash resistant)
• Drop Protection: 3 meters (10 feet)
• Power Supply: 9V battery (included)
• Connectivity: USB
• Dimensions: 207 mm x 93 mm x 52 mm
• Weight: Approximately 540 g (including battery)

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
