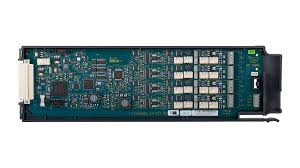

Keysight DAQM909A 4 Channel Simultaneous Sampling Module

The Keysight DAQM909A is a high-performance simultaneous sampling module designed to provide precise and reliable measurements across four channels. This module is ideal for applications requiring synchronized data acquisition, such as in R&D, testing, and monitoring environments. With its advanced features and robust design, the DAQM909A ensures accurate and efficient data collection for critical measurements.

Key Features:

1. Simultaneous Sampling:
   • Provides four channels with simultaneous sampling capability, ensuring synchronized data acquisition.
   • Ideal for applications requiring precise time correlation between multiple signals.
2. High Sampling Rate:
   • Supports sampling rates up to 500 kS/s per channel, providing detailed signal representation.
   • Ensures accurate capture of fast transient events and high-frequency signals.
3. High Resolution:
   • Offers 24-bit resolution for each channel, ensuring high precision and low noise measurements.
   • Suitable for applications demanding high dynamic range and accuracy.
4. Flexible Input Range:
   • Configurable input ranges for each channel, allowing compatibility with a variety of signal levels.
   • Supports both single-ended and differential measurements.
5. User-Friendly Interface:
   • Easy-to-use software interface for configuration, control, and data logging.
   • Compatible with Keysight’s BenchVue software for enhanced data analysis and visualization.
6. Robust Design:
   • Durable construction to withstand rigorous use in various testing environments.
   • Designed for reliable operation in demanding applications.
7. Connectivity and Integration:
   • Multiple communication interfaces including USB and LAN for seamless integration into automated test systems.
   • Supports remote control and monitoring for enhanced flexibility and efficiency.

Technical Specifications:

• Channels: 4 simultaneous sampling channels
• Sampling Rate: Up to 500 kS/s per channel
• Resolution: 24-bit
• Input Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V (configurable)
• Input Type: Single-ended or differential
• Connectivity: USB 2.0, LAN (Ethernet 10/100Base-T)
• Compatibility: Keysight BenchVue software
• Dimensions: 103 mm x 250 mm x 48 mm
• Weight: Approximately 1.2 kg

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
