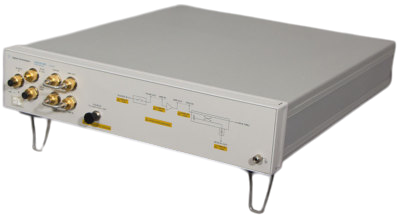

Keysight (Agilent) Z5623A-H81 2-20 GHz RF Mod/Amp/Coupler Test Set

The Keysight (Agilent) Z5623A-H81 RF Modulator/Amplifier/Coupler Test Set is a versatile and high-performance instrument designed for testing RF and microwave components and systems. Covering a broad frequency range from 2 GHz to 20 GHz, this test set is ideal for applications in communications, radar, and electronic warfare. The Z5623A-H81 offers exceptional signal fidelity, advanced measurement capabilities, and a user-friendly interface, making it an essential tool for engineers and technicians working with RF and microwave technologies.

Key Features:

1. Wide Frequency Range:
   • Covers a frequency range from 2 GHz to 20 GHz.
   • Suitable for a variety of RF and microwave testing applications.
2. High Performance:
   • Provides excellent signal fidelity with low phase noise and high dynamic range.
   • Ensures accurate and reliable measurements.
3. Versatile Testing Capabilities:
   • Supports modulation, amplification, and coupling measurements.
   • Ideal for testing RF components such as amplifiers, modulators, and couplers.
4. User-Friendly Interface:
   • Intuitive front panel controls and clear display for easy operation.
   • Advanced software tools for data analysis and visualization.
5. Robust and Durable Design:
   • Built with high-quality materials to ensure long-term reliability.
   • Designed to withstand rigorous use in demanding testing environments.
6. Flexible Connectivity:
   • Multiple communication interfaces including USB, LAN, and GPIB for seamless integration into automated test systems.
   • Supports remote control and data transfer for enhanced operational flexibility.

Technical Specifications:

• Frequency Range: 2 GHz to 20 GHz
• Input Power Range: Typically -30 dBm to +20 dBm
• Output Power Range: Typically 0 dBm to +20 dBm
• Dynamic Range: > 100 dB (typical)
• Phase Noise: -100 dBc/Hz at 10 kHz offset (typical)
• Modulation Types: Supports various modulation schemes
• Amplification Gain: Adjustable gain settings
• Coupling: High-precision coupler for accurate measurements
• Connectivity:
  • USB
  • LAN (Ethernet 10/100Base-T)
  • GPIB
• Display: High-resolution display for clear visualization of measurements
• Software: Compatible with Keysight’s measurement and analysis software
• Power Supply: 100-240 VAC, 50/60 Hz
• Dimensions: 177 mm x 426 mm x 560 mm
• Weight: Approximately 20 kg

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
