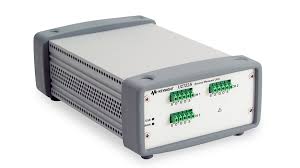

Keysight (Agilent) U2722A Source/Measure Unit, 3-Channel, USB

The Keysight (Agilent) U2722A Source/Measure Unit (SMU) is a versatile and high-precision instrument designed for sourcing and measuring voltage and current across three independent channels. This SMU is ideal for a wide range of applications, including semiconductor testing, materials research, and electronic component characterization. The U2722A offers exceptional accuracy, advanced features, and ease of integration, making it an essential tool for engineers and technicians working in R&D and manufacturing environments.

Key Features:

1. Triple Channel Operation:
   • Provides three independent channels for simultaneous sourcing and measurement.
   • Ideal for multi-channel testing applications.
2. High Precision and Accuracy:
   • Delivers precise sourcing and measurement of voltage and current with high resolution.
   • Ensures accurate and reliable results for critical testing applications.
3. Versatile Operation:
   • Supports four-quadrant operation, allowing both sourcing and sinking of current.
   • Capable of operating in constant voltage (CV) and constant current (CC) modes.
4. Wide Measurement Range:
   • Voltage range: ±20 V
   • Current range: ±120 mA per channel
   • Suitable for a variety of testing needs, from low-level measurements to higher current applications.
5. User-Friendly Interface:
   • Intuitive software interface for easy setup, control, and data analysis.
   • Supports advanced measurement functions such as sweep and pulse generation.
6. Flexible Connectivity:
   • USB 2.0 connectivity for simple plug-and-play operation.
   • Seamless integration with PC-based control and data acquisition systems.
7. Compact and Modular Design:
   • Compact form factor for easy integration into test setups.
   • Can be used as a standalone unit or as part of a modular system with the Keysight U2781A USB Modular Product Chassis.
8. Advanced Features:
   • Includes features such as remote sensing to ensure accurate voltage delivery at the load.
   • Provides built-in protection features to safeguard both the SMU and the device under test.

Technical Specifications:

• Channels: 3 independent channels
• Voltage Range: ±20 V
• Current Range: ±120 mA per channel
• Resolution:
  • Voltage: 1 ?V
  • Current: 100 pA
• Accuracy:
  • Voltage: ±0.025% of reading + 2 ?V
  • Current: ±0.025% of reading + 100 pA
• Output Modes: Constant voltage (CV), constant current (CC)
• Connectivity: USB 2.0
• Power Supply: External power adapter
• Dimensions: 117 mm x 180 mm x 41 mm
• Weight: Approximately 1.5 kg

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
