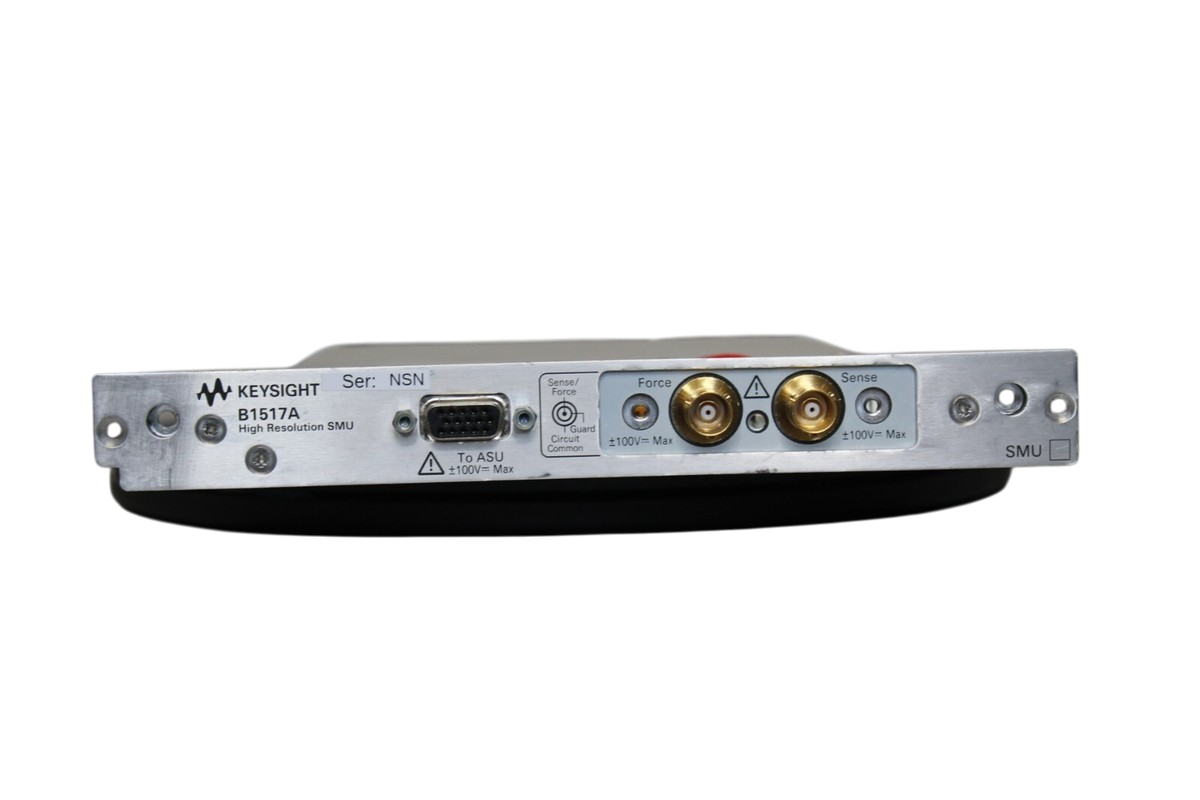

Keysight / Agilent B1517A High Resolution SMU Module

The Keysight/Agilent B1517A High Resolution Source/Measure Unit (SMU) Module is designed for precise sourcing and measuring of voltage and current. It offers exceptional resolution, accuracy, and flexibility, making it ideal for a wide range of applications including semiconductor device characterization, materials research, and electronic component testing. The B1517A is a key component in Keysight’s B1500A Semiconductor Device Analyzer, providing high-performance capabilities to meet the demanding requirements of R&D and manufacturing environments.

Key Features:

1. High Resolution and Accuracy:
   • Provides high resolution with a minimum current measurement capability down to 0.1 fA and voltage resolution down to 0.5 ?V.
   • Ensures precise and accurate sourcing and measuring of voltage and current.
2. Wide Operating Range:
   • Offers a wide voltage range of ±100 V and a current range of ±1 A DC / ±4.2 A pulse.
   • Suitable for a variety of testing needs, from low-level measurements to high-current applications.
3. Flexible Operation:
   • Supports four-quadrant operation, allowing for both sourcing and sinking of current.
   • Ideal for a wide range of applications including IV characterization, pulsed measurements, and more.
4. Advanced Measurement Capabilities:
   • Features low current and low voltage capabilities, making it suitable for ultra-low current measurements.
   • Includes integrated sweep and stress testing functionalities for comprehensive device characterization.
5. User-Friendly Interface:
   • Compatible with Keysight’s EasyEXPERT group+ software for intuitive control, data analysis, and visualization.
   • Provides a seamless user experience with advanced data logging and analysis tools.
6. Robust and Reliable Design:
   • Built with high-quality components to ensure durability and long-term reliability.
   • Designed to deliver consistent performance in demanding testing environments.

Technical Specifications:

• Voltage Range: ±100 V
• Current Range:
  • DC: ±1 A
  • Pulse: ±4.2 A
• Resolution:
  • Voltage: 0.5 ?V
  • Current: 0.1 fA
• Accuracy:
  • Voltage: ±0.025% of reading + 2 ?V
  • Current: ±0.025% of reading + 100 fA
• Output Modes: Voltage source, current source, voltage measure, current measure
• Measurement Functions: IV characterization, pulsed measurements, stress testing
• Interfaces: Compatible with Keysight B1500A Semiconductor Device Analyzer
• Software: EasyEXPERT group+ software
• Dimensions: 426 mm x 88 mm x 348 mm (approx.)
• Weight: Approximately 4 kg
