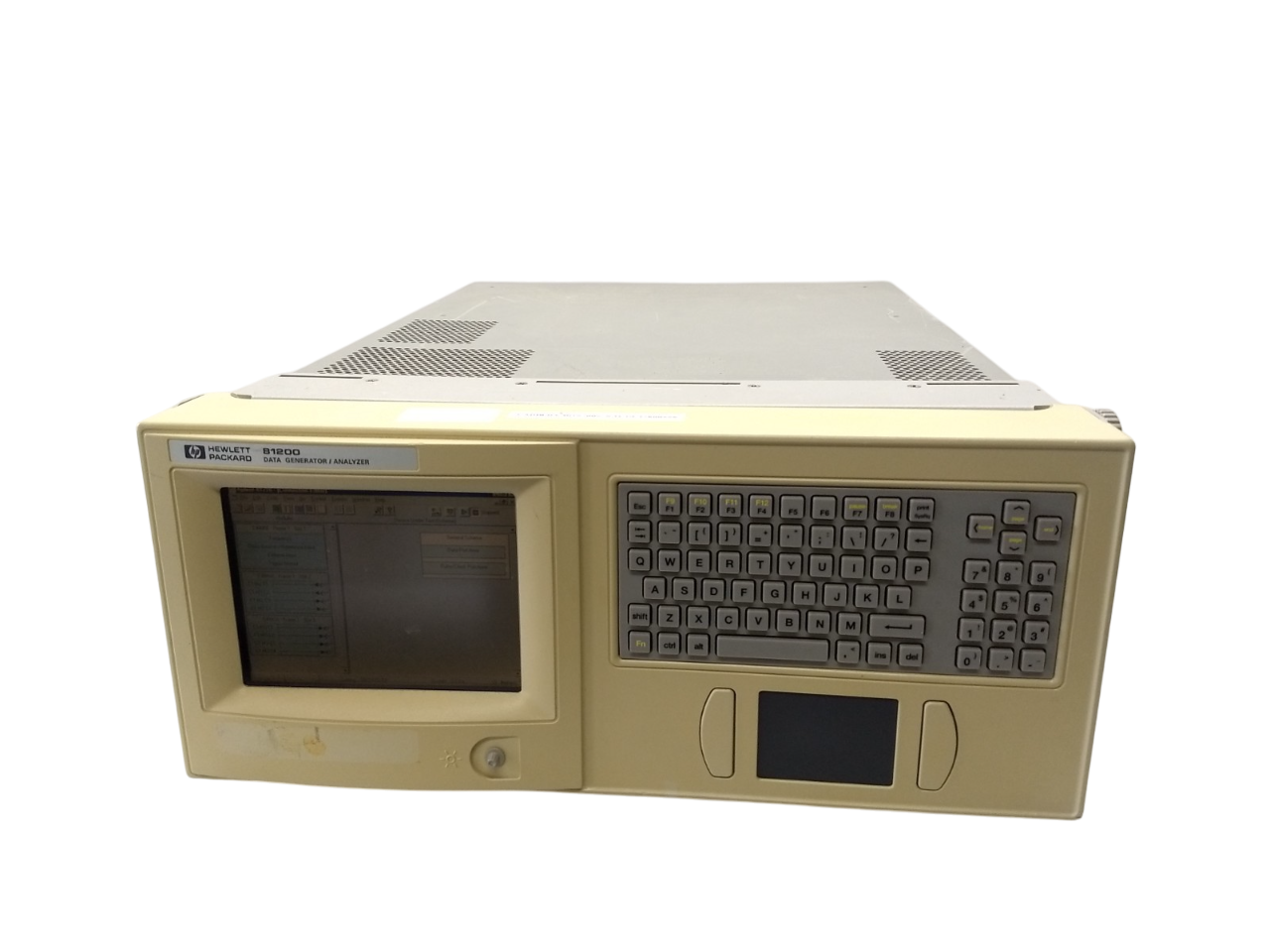

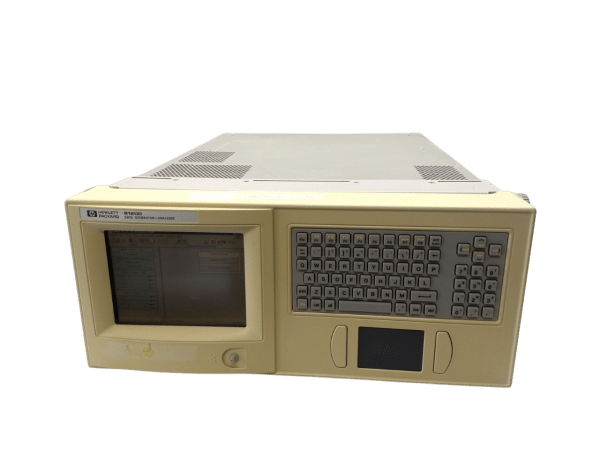

Keysight 81200A Data Generator/Analyzer

The Keysight 81200A Data Generator/Analyzer is a versatile and high-performance instrument designed for testing and validating digital systems and components. It combines the functionality of a data generator and an analyzer, providing comprehensive testing capabilities for high-speed digital circuits. The 81200A is ideal for applications in R&D, design validation, and production testing, offering precise control and accurate measurement of digital signals.

Key Features:

1. High-Speed Data Generation:
   • Capable of generating high-speed digital signals with precise control over timing and amplitude.
   • Supports a wide range of data rates and formats to simulate various digital communication protocols.
2. Comprehensive Analysis Capabilities:
   • Provides detailed analysis of digital signals, including timing, amplitude, and jitter measurements.
   • Supports pattern capture and comparison for thorough validation of digital systems.
3. Flexible Configuration:
   • Modular design allows for easy expansion and customization to meet specific testing requirements.
   • Supports multiple channels and a variety of I/O interfaces for versatile connectivity.
4. User-Friendly Interface:
   • Intuitive graphical user interface for easy setup, control, and data visualization.
   • Advanced software tools for pattern generation, signal analysis, and automated testing.
5. High Accuracy and Precision:
   • Ensures accurate signal generation and measurement with low jitter and high timing resolution.
   • Ideal for testing high-speed digital circuits and ensuring compliance with industry standards.
6. Robust and Reliable Design:
   • Built for long-term reliability in demanding test environments.
   • Provides stable and consistent performance for rigorous testing applications.

Technical Specifications:

• Data Generation:
  • Data Rates: Up to 13.5 Gbps (depending on configuration)
  • Signal Formats: NRZ, PAM4, and others
  • Amplitude Control: Adjustable output levels
  • Timing Resolution: High-resolution timing control
• Data Analysis:
  • Measurement Parameters: Timing, amplitude, jitter, pattern comparison
  • Capture Capability: Pattern capture and analysis
  • Analysis Tools: Jitter analysis, eye diagrams, bit error rate (BER) testing
• Modular Configuration:
  • Channels: Multiple channel support (configurable)
  • I/O Interfaces: Various I/O interfaces including LVDS, CML, and more
• User Interface:
  • Graphical User Interface: Intuitive and easy to use
  • Software Tools: Pattern generation, signal analysis, automated testing
• Connectivity:
  • Interfaces: USB, LAN, GPIB
  • Remote Control: Supported via software
• Power Supply:
  • Voltage: 100-240 VAC
  • Frequency: 50/60 Hz
• Dimensions: Standard rack-mountable form factor
• Weight: Varies depending on configuration

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
