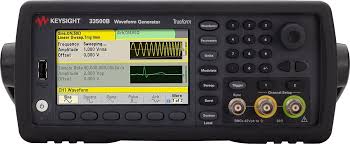

Keysight 33510B 20MHz Waveform Generator

The Keysight 33510B is a high-performance single-channel waveform generator designed to provide accurate and versatile signal generation for a variety of testing and development applications. With a frequency range up to 20 MHz, this waveform generator is ideal for R&D, design validation, and manufacturing test environments. The 33510B offers exceptional signal fidelity, advanced capabilities, and a user-friendly interface, making it an essential tool for engineers and technicians.

Key Features:

1. Wide Frequency Range:
   • Generates waveforms up to 20 MHz for sine waves and up to 20 MHz for square waves.
   • Supports a broad range of signal generation needs for various applications.
2. High Signal Fidelity:
   • Ensures precise signal generation with low jitter and high waveform integrity.
   • 16-bit resolution and 250 MSa/s sampling rate for detailed waveform generation.
3. Arbitrary Waveform Generation:
   • Supports complex arbitrary waveform creation with a deep memory of up to 1 Mpts.
   • Enables custom waveform generation for specialized testing requirements.
4. Pulse and Function Generation:
   • Capable of generating a wide variety of standard waveforms including sine, square, triangle, ramp, and pulse.
   • Includes features like variable edge times, pulse width, and duty cycle control.
5. User-Friendly Interface:
   • Intuitive graphical user interface with a large color display for easy setup and operation.
   • Advanced waveform editing and signal configuration tools.
6. Flexible Connectivity:
   • Multiple communication interfaces including USB, LAN, and GPIB for seamless integration into automated test systems.
   • Supports remote control and data transfer for enhanced operational flexibility.
7. Advanced Modulation Capabilities:
   • Supports AM, FM, PM, PWM, FSK, and BPSK modulation types.
   • Ideal for testing and characterizing communication systems and components.

Technical Specifications:

• Frequency Range:
  • Sine: Up to 20 MHz
  • Square: Up to 20 MHz
  • Arbitrary: Up to 20 MHz
• Amplitude Range:
  • 50 ?: 10 mVpp to 10 Vpp
  • High-Z: 20 mVpp to 20 Vpp
• Resolution:
  • 16 bits
• Sampling Rate:
  • 250 MSa/s
• Waveform Memory:
  • Up to 1 Mpts
• Modulation Types:
  • AM, FM, PM, PWM, FSK, BPSK
• Output Channels:
  • 1 channel
• Connectivity:
  • USB 2.0
  • LAN (Ethernet 10/100Base-T)
  • GPIB
• Display:
  • Large color LCD
• Power Supply:
  • Voltage: 100-240 VAC
  • Frequency: 50/60 Hz
• Dimensions: 103 mm x 261 mm x 365 mm
• Weight: Approximately 4.5 kg

This unit is in good working condition and is tested to OEM critical specifications. Comes with a 30 day warranty, and we also offer a 7 day right of return (restocking fee may apply). We have been in business for over 25 years, our main focus is customer satisfaction by providing the highest quality of new or used test equipment. Please let us know if you have any questions.

We offer fast domestic and international shipping. We can ship on your FedEx, UPS, or DHL account upon request.  Lead time is typically 1-3 business days. Overseas customers, please consider duty’s and taxes before purchasing

We accept PayPal, Credit Cards, Wire Transfers, Checks, and NET Terms (select and approved customers only).
