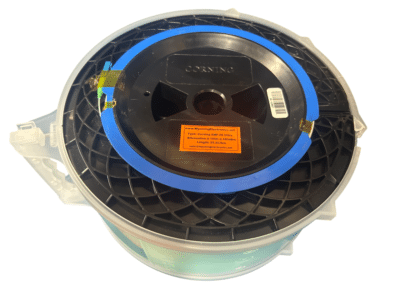

Corning SMF-28 Ultra Bare Optical Fiber **Select Any Length AND Connector**

Corning SMF-28 Ultra Bare Optical Fiber **Select Any Length AND Connector**
Features List
  30 Day Warranty
  Technical Support
  NIST Traceable Calibration
  Net-30 Terms

Product Starting From:

Price range: $250.00 through $920.00

Get a Quick Quote


Untitled Document

CORNING SMF-28 ULTRA SINGLE MODE FIBER 2,5,10,15,20,25km spools available! Choose your connector!!!

You can choose which connectors (start/end) you would like (or none if you don’t need any)!  All fiber is tested with our calibrated OTDR.
This is NOT jacketed fiber. This is bare spool fiber for manufacturing/testing/simulation purposes. Only the start/end connectors if you purchase this option will be jacketed approximately 2 meters in length.
Corning SMF-28 ULTRA SPECIFICATIONS:
Fiber Type: Single-mode optical fiber (ITU-T G.652.D compliant)
Operating Wavelength: 1310 nm and 1550 nm (dual-window optimized)
Mode Field Diameter:
9.2 µm (±0.4 µm) at 1310 nm
10.4 µm (±0.5 µm) at 1550 nm
Attenuation:
? 0.32 dB/km at 1310 nm
? 0.18 dB/km at 1550 nm
Cladding Diameter: 125 µm ± 0.7 µm
Coating Diameter: 242 µm ± 5 µm
Core-Clad Concentricity: ? 0.5 µm
Cladding Non-Circularity: ? 0.7%
Cut-off Wavelength (Cable Cutoff): ? 1260 nm

QUESTIONS? Please send us a message and we’re happy to help!

This unit is in good working condition and comes with a 30 day warranty.  We also offer a 14 day ROR.  We have been in business for over 15 years, our main focus is customer satisfaction through excellent service and providing high quality test equipment.  Please let us know if you have any questions or other test equipment needs.

SHIPPING

We offer fast domestic and international Shipping.  Shipping using the customer’s FedEx, UPS, or DHL account is available upon request.  Overseas customers please consider freight / customs charges before bidding.  Lead time for most units is usually between 1-3 business days.

PAYMENTS




Additional information

Length

10km, 15km, 20km, 25km, 2km, 5km
Product Type

, , , , ,

Brand

MPN

N/A
