View All Products >Agilent 81600B Tunable Laser 1495-1640nm w/ opt 072, 160 **CALIBRATED**
30 Day Warranty
Technical Support
NIST Traceable Calibration
Net-30 Terms
Product Starting From:
$31,500.00
Get a Quick Quote

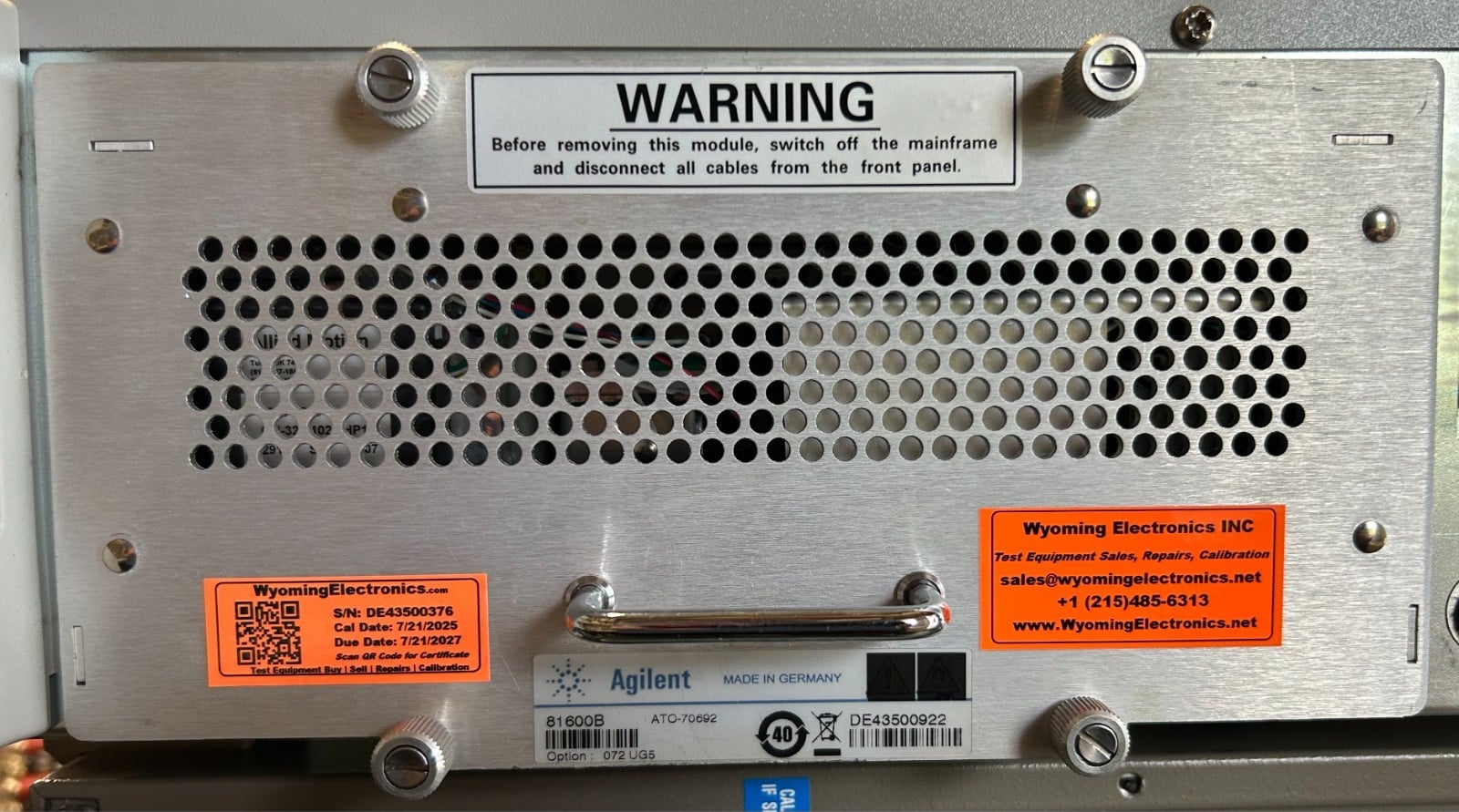

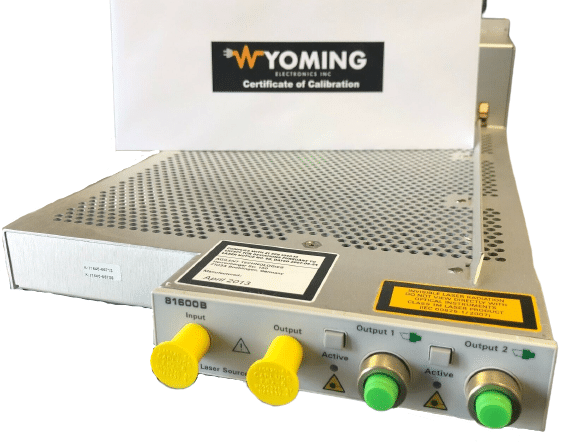

Agilent 81600B Tunable Laser 1495-1640nm w/ opt 072, 160 **CALIBRATED**
100% Functional in very good cosmetic condition. Ready for lab-use or resale! Comes freshly calibrated with data.
Option 072 – PMF Angled Contact
Option 160 – 1495 to 1640nm wavelength
More Details:
- Wavelength Range: 1495 nm to 1640 nm
- Wavelength Resolution: 0.1 pm, 12.5 MHz at 1550 nm<
- Optical Output Level:
- Output 1: > –7 dBm (1495 nm –1640 nm) (peak: -2 dBm)
- Output 2: > –1 dBm (1495 nm –1640 nm) (peak : + 7 dBm)
- Option 072: PMF, angled contact output connector
- Option 160: All-band Tunable Laser Source 1495 nm to 1640 nm, low SSE
- Optical Power Stability:typ.±0.03 dB, 24 hours
- Wavelength Accuracy: ±10 pm, typ. ± 2.5 pm
Please contact us if you have any questions!
This unit is in good working condition and comes with a 30 day warranty. We also offer a 14 day ROR. We have been in business for over 15 years, our main focus is customer satisfaction through excellent service and providing high quality test equipment. Please let us know if you have any questions or other test equipment needs.
SHIPPING
We offer fast domestic and international shipping. Shipping using the customer’s FedEx, UPS, or DHL account is available upon request. Overseas customers please consider freight / customs charges before bidding. Lead time for most units is usually between 1-3 business days.
